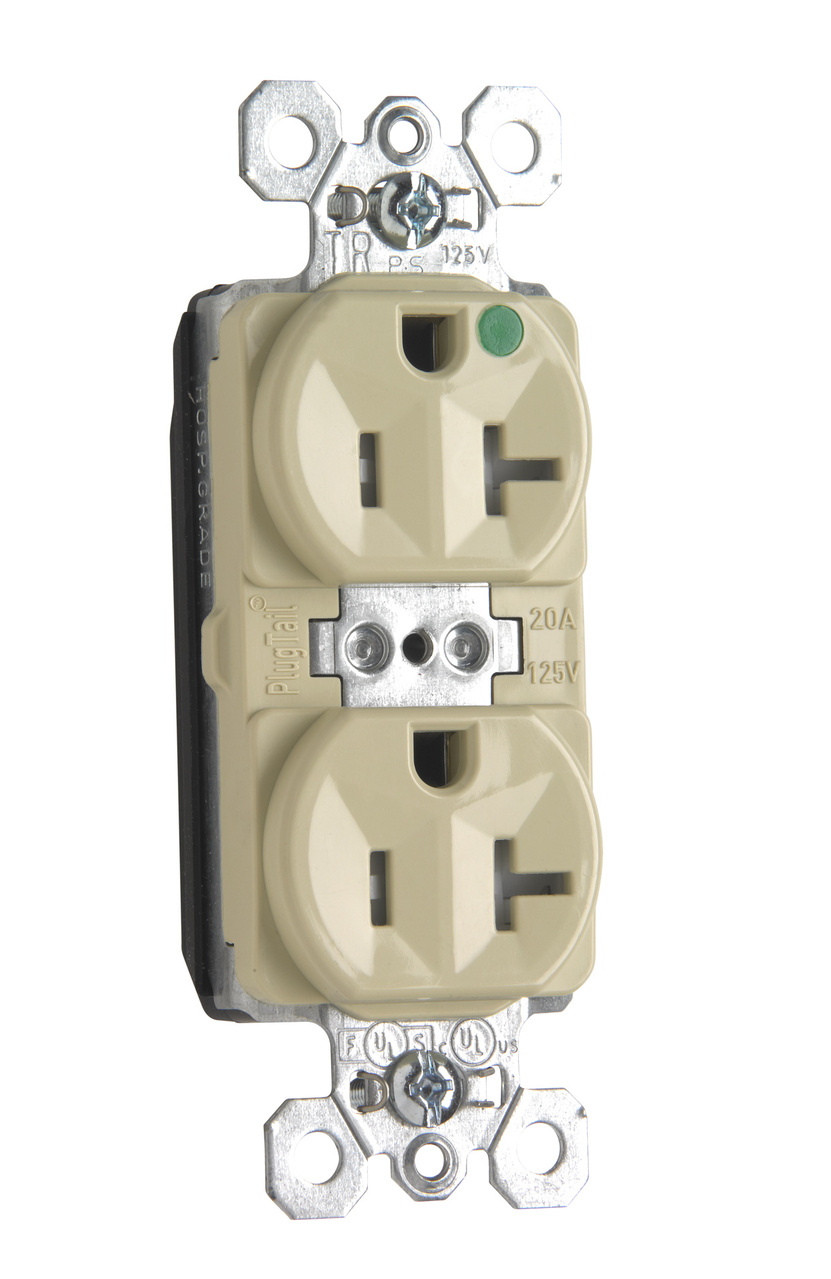

Pass & Seymour PTTR8300-I PlugTail 20 Amp 125 Volt Ivory Tamper Resistant Hospital Grade Duplex Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # PTTR8300I | Codale Part # 4541811
$51.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PlugTail® Tamper-Resistant Hospital Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Dielectric Strength
2000 V
Grade
Hospital
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.5 L x .625 W x 3.281 H In
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007013559
Color
Ivory
Finish
Matte
Product UPC
78500701355
UNSPSC
39121406

Dimensions

Depth
5/8 Inch
Height
3.281 Inch
Width
1.5 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Brushed finish.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
Certifications
  • Federal Spec Listed
  • cULus Listed
