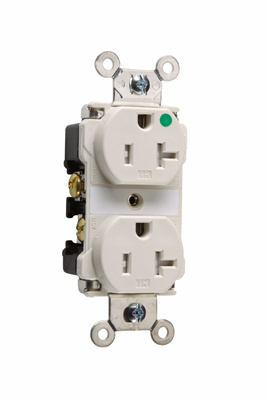

Product image for Pass & Seymour TR63-HLA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Tamper-Resistant Duplex Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour TR63-HLA 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Light Almond Nylon Tamper-Resistant Duplex Receptacle

Manufacturer: Legrand Pass & Seymour | Catalog # TR63HLA | Codale Part # 4541819
$106.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tamper-Resistant Hospital Grade Receptacles, Back and Side Wire, 20A, 125V

Technical Information

Amperage
20 Amp
Applications
For Commercial Applications
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Dielectric Strength
2000 V
Grade
Hospital
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.625 L x .900 W x 3.281 H In
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007145175
Color
Light Almond
Product UPC
78500714517
UNSPSC
39121406

Dimensions

Depth
0.9 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects.
  • AC receptacles available in 15 and 20 Amp, 125V
  • Extra heavy-duty brass, one-piece mounting strap with integral ground.
  • One-piece, nickel-plated: brass, triple-wipe power contacts for lasting retention.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Impact-resistant nylon face and back body.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
