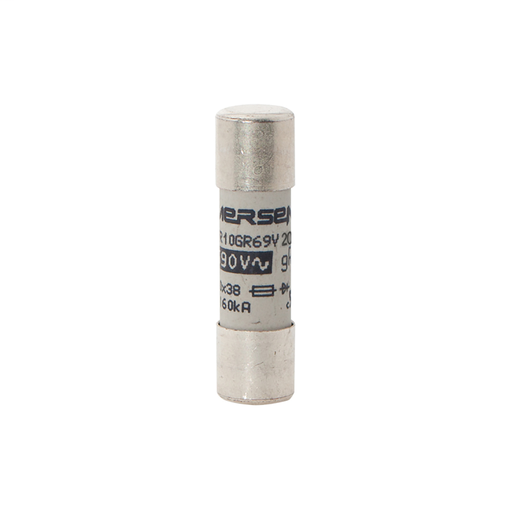

Mersen E1014580 FR10GR69V20

Manufacturer: Mersen | Catalog # E1014580 | Codale Part # 4541842
$30.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The 10x38 gR cylindrical is a fast acting, full range fuse used in the protection of inverters, UPS, variable speed drives and other discrete semiconductor devices.

Technical Information

Amperage
20 Amp
Applications
Protection of small inverters, UPS systems, motor drives and similar 700V or less equipments.
Insulation Material
Ceramic
Mounting Type
Clip
Rated Voltage AC
690 V
Tc Connection
Ferrule
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
European Cylindrical Style
Voltage
690 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
3605340501025
Product UPC
60534050102
Weight
0.018 lb

Dimensions

Diameter
0.41 Inch
Length
1.54 Inch

Certifications and Compliance

Country of Origin
France
Features
  • gR Class according to IEC 60269-4 and VDE 636-23
  • Low I²t for improved semiconductor protection
  • Eliminate all overloads
  • Extremely fast acting
  • Current limiting
  • Excellent cycling capability
Certifications
  • UL/CSA Recognized Component
  • IEC 60269-4 Compliance
  • AC: UL Guide No. E76491
