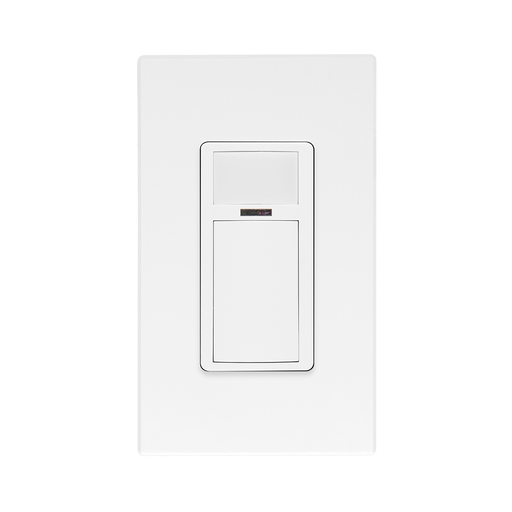

Image thumbnail 1

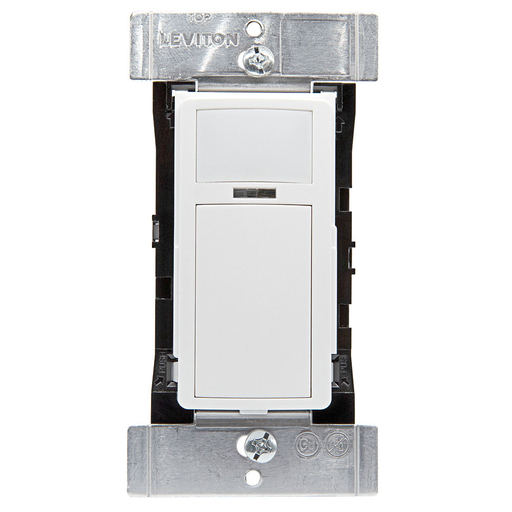

Image thumbnail 2
Image thumbnail 3
Email

LEV ODS15-GDW SMART WB BLE PIR, 100

Manufacturer: Leviton | Catalog # ODS15-GDW | Codale Part # 4543461
$91.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Smart Sensor, PIR, Antimicrobial, Wallbox, App configurable; Auto-ON/Auto-OFF or Manual-ON/Auto-OFF no neutral wire required. 120-277VAC, 50/60hz, Commercial Grade, White

Technical Information

Frequency
50 Hz
Grade
Commercial
Mounting Type
Surface
Operating Temperature
40 degrees degrees C
Size
53.95 mm

Manufacturer Information

Brand
Leviton
Sub Brand
OCC SENSOR WALLPLATE

General Product Info

12-Digit UPC
078477999660
Color
White
Product UPC
07847799966

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Patents
  • US11594950
Features
  • Can be used to comply with IECC, ASHRAE 90.1, and 2019 Title24, Part 6 occupancy/vacancy sensing and manual control requirements
  • Fits in a standard wallbox and gangable with other units
  • Controls General Purpose plug loads up to 20A and LED lighting loads up to 10A
  • One relay module for single-level switching
  • 180° field-of-view provides approximately 1,100 square feet of coverage
  • Latest PIR technology accurately detects minor motion up to400sq ft and major motion up to 1,100 sq ft
  • Maximum sensing distance in front of the sensor is 30-40 feet and 15-20 feet on either side
  • Integrated photocell for daylighting hold-OFF
  • Add a Power Pack and Controlled Receptacles for plug load control
  • Use the Leviton Push to Pair (P2P) process to create a multi-way system for up to 5 devices
  • Advanced configuration can be performed
  • The Leviton Smart Sensor uses Passive Infrared (PIR) detection technology to monitor a room for occupancy using a segmented, tamper resistant lens. A specialized lens divides the field-of-view into sensor zones. When a person passes in or out of a sensor zone, the sensor detects motion and switches the lights ON. The lights will remain ON as long as an occupant is moving through the sensor zones. The ODS15-xxxs vacancy mode features manual-ON/ auto-OFF for installations where manual-ON switching is required for energy code applications. Configuration of the ODS15-xxx is made using the Leviton Smart Sensor App from a smartphone or other Bluetooth®-enabled Android or iOS device. Simple configuration can also be applied using pushbutton setup for several popular pre configured options. The ODS15 integrates a photocell for daylighting hold-OFF which can be programmed using the Leviton Smart Sensor App. Ideal for non-residential and commercial spaces up to 1,100 SF including offices, meeting rooms, and lobbies. Do you have a question about an occupancy sensor or vacancy sensor?
