PAN UTPSPL10MBUY Cat 6 24 AWG UTP C

Manufacturer: PANDUIT | Catalog # UTPSPL10MBUY | Codale Part # 4543502
$95.81/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

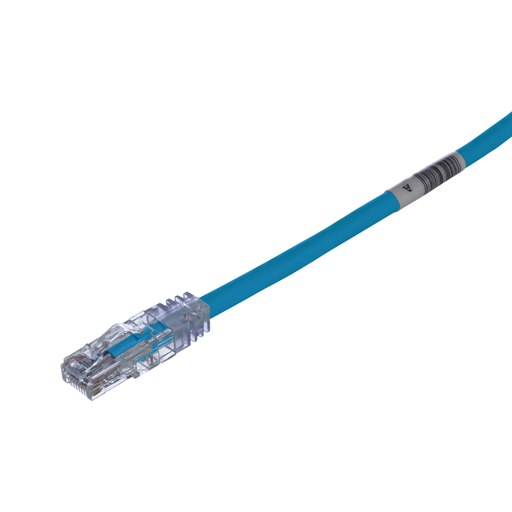

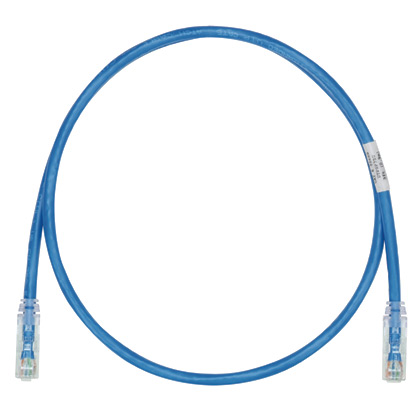

The TX6™ PLUS Cat 6 UTP Patch Cord is a 10-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6
Plug Type
Modular Plug
Type
Category 6
Wire Size
24 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983746699
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498374669

Dimensions

Cable Length
10 m
Outside Diameter
5.8 mm
Overall Length
10 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
Prop 65
  • No
