PAN UTPSPL8MY Cu,PC,Cat6,LSZH,UTP,C

Manufacturer: PANDUIT | Catalog # UTPSPL8MY | Codale Part # 4543504
$83.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

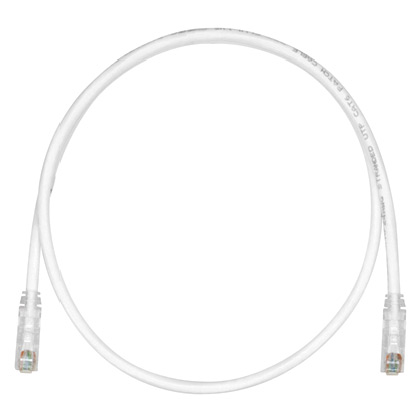

The TX6™ PLUS Cat 6 UTP Patch Cord is a 8-Meter, Off-White cord constructed of 24 AWG, unshielded, twisted pair, stranded, LSZH (60332-1) cable with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP
Boot Color
Clear
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 5e
Plug Type
Modular Plug
Temperature Rating
140 degrees F
Type
Category 6
Wire Size
24 in

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983744039
Color
Off-White
Jacket Material
LSZH Material
Product UPC
07498374403

Dimensions

Cable Length
8 m
Length
26.25 Foot
Outside Diameter
6 mm
Overall Length
8 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E, meets ANSI/TIA-1096-A (formerly FCC Part 68), meets IEC 60603-7, UL 1863, rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
