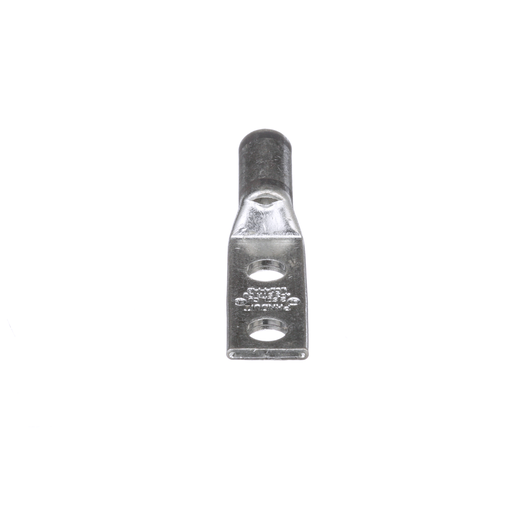

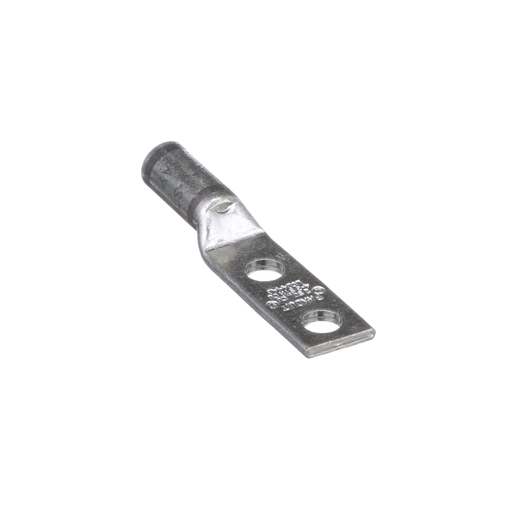

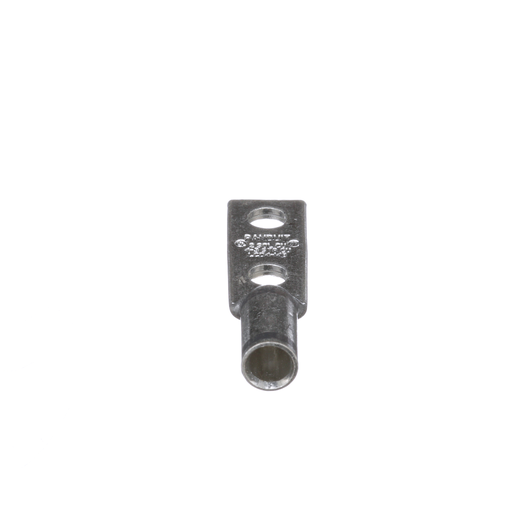

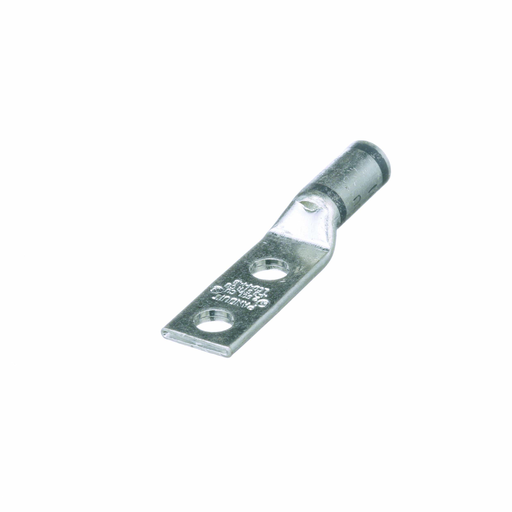

Panduit LCD4-14B-L Pan-Lug™ Copper 2 Hole Straight Tongue Compression Lug

Manufacturer: Panduit | Catalog # LCD4-14B-L | Codale Part # 4544135
$1,807.91/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Two-hole, standard barrel lug with window, #4 . #3 AWG STR, #2 AWG SOL wire, 1/4 stud hole, .75 hole spacing.

Technical Information

Angle
Straight
Barrel Length
0.81 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
2 Hole
Size
#4 #3 AWG Code STR, #2 AWG Code SOL
Stud Size
1/4 In.
Tongue Thickness
0.09 in
Tongue Type
Standard
Tongue Width
0.55 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983383054
Color
Gray
Product UPC
07498338305
UNSPSC
39121405

Dimensions

Overall Length
2.38 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, NEBS Level 3
