Wiremold 828DLR Single Locking Cover Plate

Manufacturer: Legrand Wiremold | Catalog # 828DLR | Codale Part # 4544163
$122.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual CAD Drawing #1
OmniBox™ Series Floor Boxes provides an excellent activation solution when multiple services are required in open space areas. OmniBox™ Series Floor Boxes offer one-, two-, and three-gang multi-service boxes that are fully adjustable before and after the concrete pour. Available in both stamped steel and cast iron fabrications, they meet a wide range of workstation requirements for today.s and tomorrow.s service needs. These floor boxes have many applications, some of which include schools, financial institutions, and commercial office buildings. .

Technical Information

Applications
Commercial
Cable Entry
Through Floor
Material
Brass
Type
Floor Box

Manufacturer Information

Brand
Legrand
Sub Brand
Wiremold

General Product Info

12-Digit UPC
786564054580
Color
Black/Brass/Brown/Silver
Construction
Assembled
Product Series
Omnibox
Product UPC
78656405458

Dimensions

Depth
4.13 Inch
Height
1/4 Inch
Width
3.13 in

Certifications and Compliance

Certifications
CULUS,ROHS
Country of Origin
China
Features

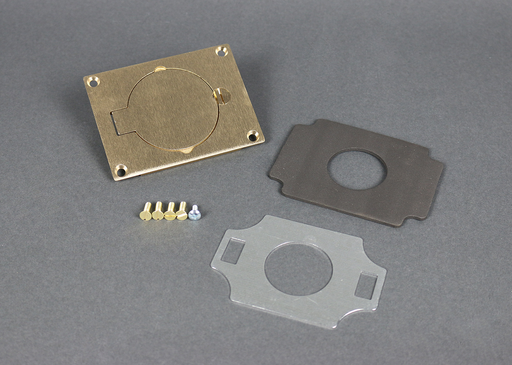

  • Brass single locking receptacle cover plate. Single flip lid cover for 20A or 30A single locking receptacles.
  • Device opening is 2 5/8'' (67mm). For use with maximum female locking device of 1.58'' diameter, and maximum male plug face of 2.25'' diameter.
  • NOTE: Brass covers and flanges are not interchangeable with aluminum or nonmetallic covers and flanges. Nonmetallic covers are interchangeable with aluminum flanges.
Certifications
  • cULus Listed
  • RoHS Compliant
