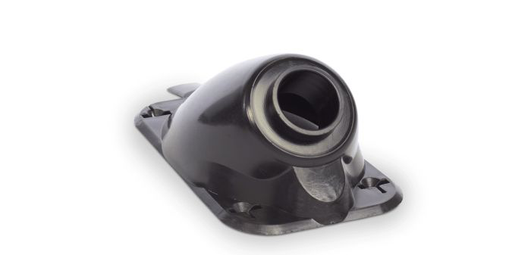

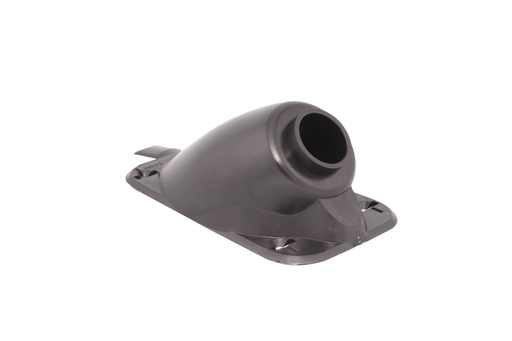

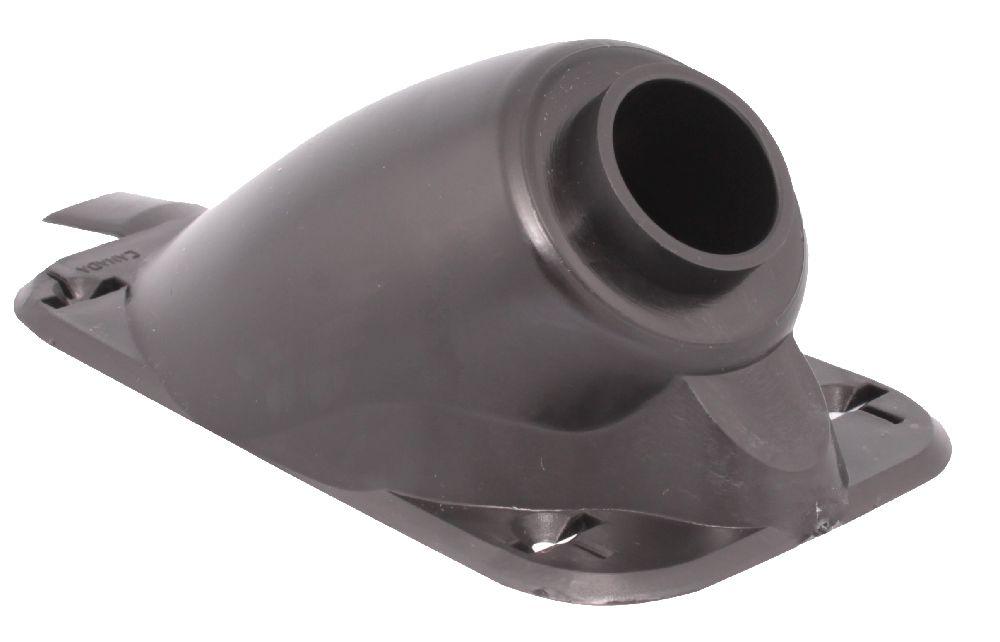

IPEX 089235 1 Inch 45 Degrees PVC ENT Conduit Angled Form Stubby

Manufacturer: Kraloy | Catalog # 089235 | Codale Part # 4544204
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The KWIKON Angled Stubby eliminates the need for drilling holes in the plywood forms to create stub downs. With our unique angled design, the ENT raceway maintains a low profile in the concrete pour allowing all sizes of Cor-line ENT to be used in most slabs. The 45. angled design allows Kwikon ENT to maintain a low profile in concrete slab and creates a smooth bending radius for easy pull-through of circuit wiring.

Technical Information

Angle
45
Applications
For Horizontal to Vertical ENT Transition Fitting
Connection Type
Plug-in
Connector Type
NAIL or SCREW
Material
Polyethylene
Size
1" IN
Tc Connection
NAIL or SCREW
Trade Size
1 Inch
Type
ANGLED FORM STUBBY

Manufacturer Information

Brand
IPEX, Inc.
Sub Brand
Kwikon

General Product Info

12-Digit UPC
622454019560
Color
Black
Housing Color
Black
Housing Material
PE
Product UPC
62245401956
Weight
0.028 kg

Dimensions

Diameter
1 Inch

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Canada
Features
  • Pullout tab allows for ease of stubby removal after the concrete pour
  • T' slot nail hole permits the head of the nail to pull through when the forms are removed
  • Can create a 'stub-down' without drilling a hole in the wood form
  • Enlarged inside throat area facilitates easy installation of PVC female adapters as required
