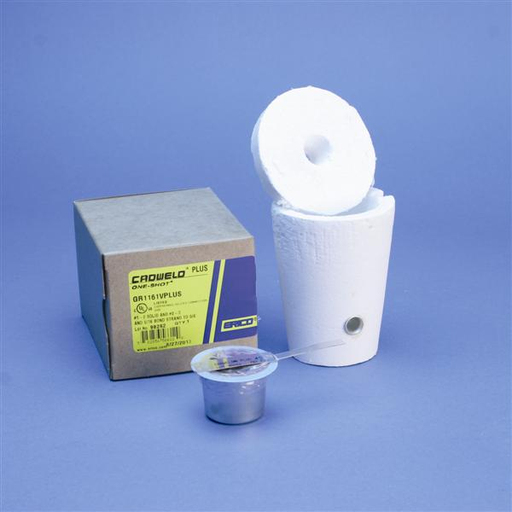

Erico / Cadweld GR1181LPLUS ONE-SHOT Exothermic Weld Mold, Cable to 3/4" Ground Rod, Cadweld Plus, #6, #4 Stranded, #4, #3 Solid

Manufacturer: Cadweld | Catalog # GR1181LPLUS | Codale Part # 4544372
$43.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
nVent ERICO Cadweld One Shot, Cable to Ground Rod, Plus, GR (ONE SHOT), 3/4" dia, #4, #3 Connection, Solid

Technical Information

Applications
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
Mold Family
GR
Standard
CULus
Type

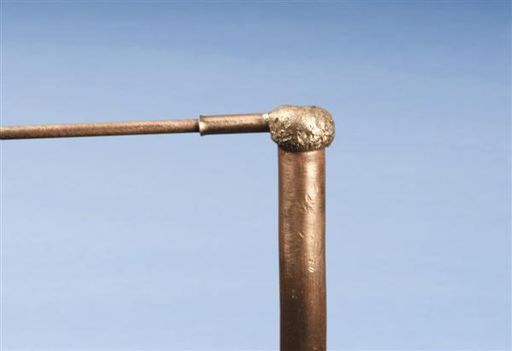

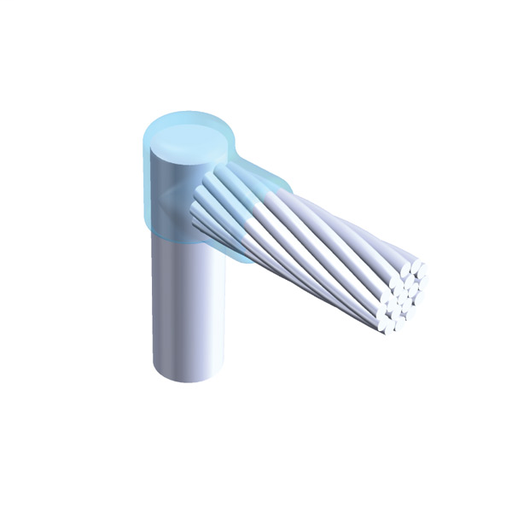

Cadweld® Plus One Shot, GR, Vertical Elbow, Horizontal Cable

Packaging

Pkg Qty
6 pc
Standard Packaging Qty
6 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856566168
Product UPC
78285656616

Certifications and Compliance

Certifications
CULus
Features
  • Produces a permanent connection that will not loosen or corrode
  • NEC compliant
  • Single use ceramic mold which eliminates the need for a graphite mold and handle clamp/frame
  • Fits plain copper-bonded, threaded copper-bonded, full-size galvanized and stainless steel ground rods
