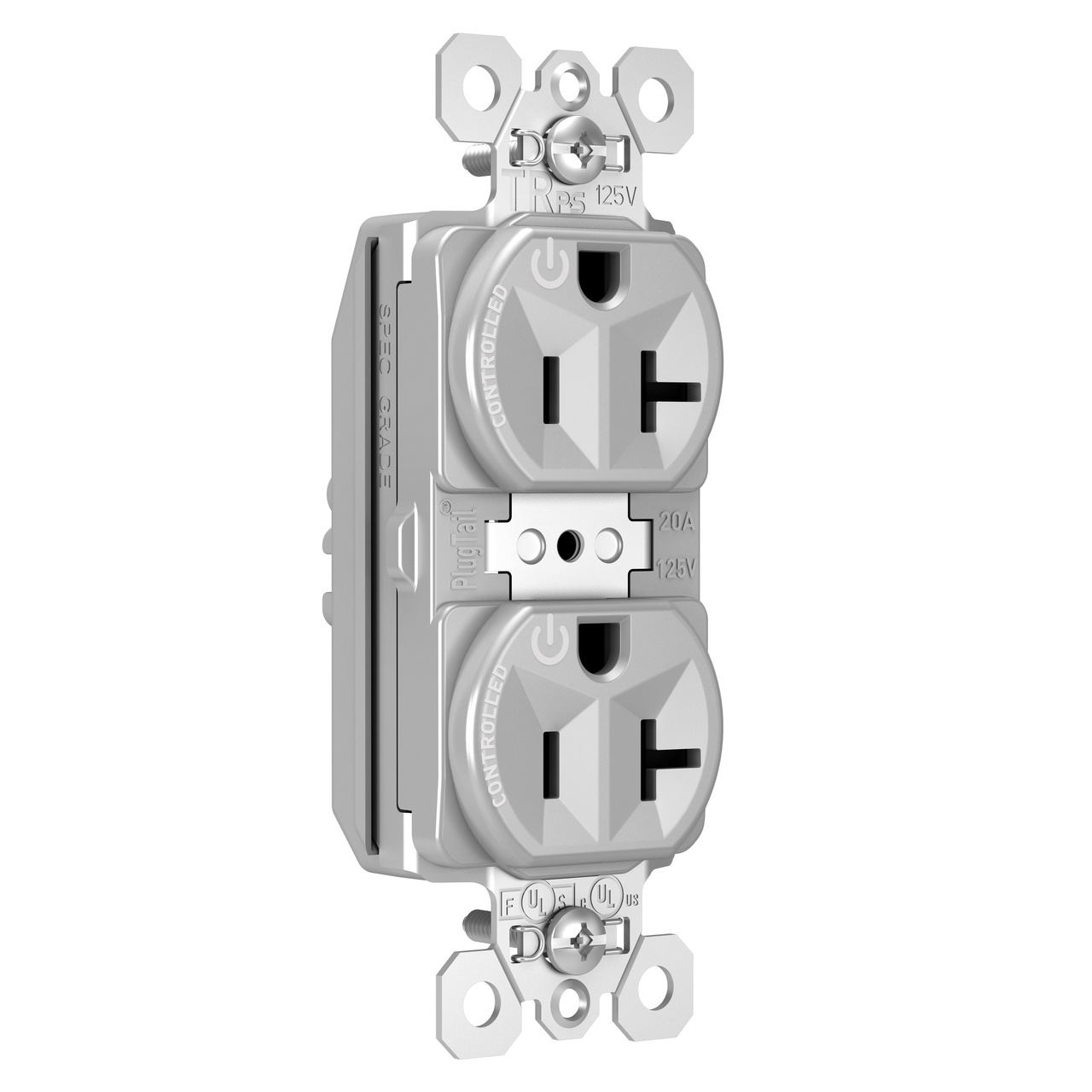

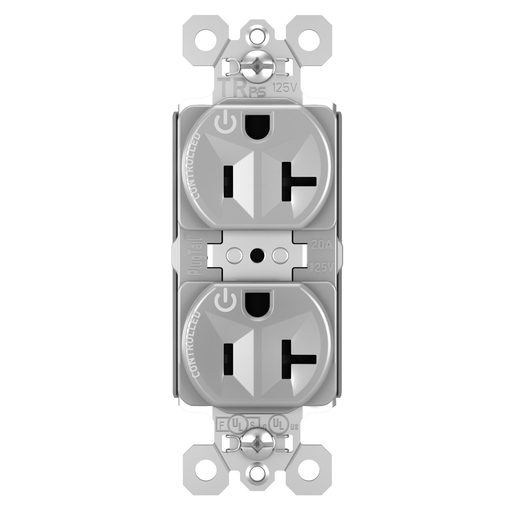

Pass & Seymour PTTR5362CDGRY PlugTail™ Dual Control Tamper-Resistant Receptacle, 20A 125V - Gray

Manufacturer: Legrand Pass & Seymour | Catalog # PTTR5362CDGRY | Codale Part # 4544542
$39.40 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
These durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. For detailed PlugTail® information, visit our PlugTail® Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
12 AWG
Connection Type
PlugTail
Dielectric Strength
2000 V
Duty Rating
Extra Heavy Duty
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade,Tamper-Resistant
Size
.78" (D) x 1.322" (W) x 3.281" (H)
Tc Connection
PlugTail
Temperature Rating
60 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007051582
Color
Gray
Product Series
PlugTail
Product UPC
78500705158
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Warranty Length
1 yr
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Dual mechanical shutter system to help prevent insertion of foreign objects (TR models).
  • Permanent controlled markings on face of receptacle compliant with ASHRAE 90.1, CA Title 24, and NEC.
  • Auto-ground clip assures positive ground.
  • Half-controlled versions include welded, pre-wired lead that control top half of receptacle for split circuit applications.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Wire Size: #12 AWG THHN
Certifications
  • cULus Listed
  • Federal Spec Listed
