LITH CPX 2X4 ALO8HE SWW7 UVOLT M2 L

Manufacturer: Lithonia Lighting | Catalog # CPX2X4ALO8HESWW7UVOLTM2 | Codale Part # 4544868
$171.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

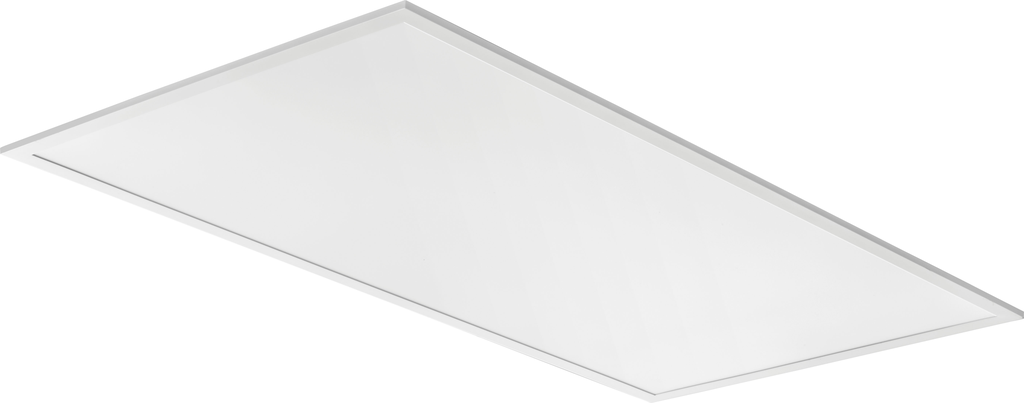

The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 3800-6200 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

Technical Information

Applications
Budget Conscious School, Commercial Office or Small Retail Footprint Projects
Color Rendering Index
80
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
Yes
Lamp Type
LED
Lens Color
White
Material
Steel
Mounting Type
Recessed,Surface,Suspended
Standard
CSADLC Premium,DLC Standard
Style
Traditional
Voltage
120-347 Volt
Wattage
51 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194994371861
Color
White
Construction
New Construction,Remodel
Environmental Conditions
Indoor
Finish
Semi-Gloss
Product Type
Flat Panel
Product UPC
19499437186
Shape
Rectangle
Weight
11.75 L

Dimensions

Height
1.68 Inch
Length
47-3/4 Inch
Warranty Length
5 yr
Width
23.82 in

Certifications and Compliance

Country of Origin
Malaysia
Application
  • Clean Room
  • Education
  • Government
  • Hospitality
  • House of Worship
  • Offices & Banks
  • Patient Room
  • Residential
  • Retail
Features
  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable White (SWW) features allow for this panel to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • DIMMING: 0-10 volts driver for dimming down to 10 percent
  • RATINGS: Certified for damp locations, CSA certified, IC rated, DLC Standard
  • VOLTAGE: UVOLT for 120V-347V
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 50,000 hours (L70>50,000)
  • INSTALLATION: can be recessed, suspended or surface box mounted with additional kit
  • BATTERY: Field-installable LED emergency driver (PS1055CP) sold separately
  • WARRANTY: 5-year limited warranty
Mounting
  • Recessed
  • Surface
  • Suspended
Standard
  • CSADLC Premium
  • DLC Standard
