SATCO S11825R1 13.7WLED/RDL/5-6/5CC

Manufacturer: SATCO Lighting | Catalog # S11825R1 | Codale Part # 4544885

$35.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

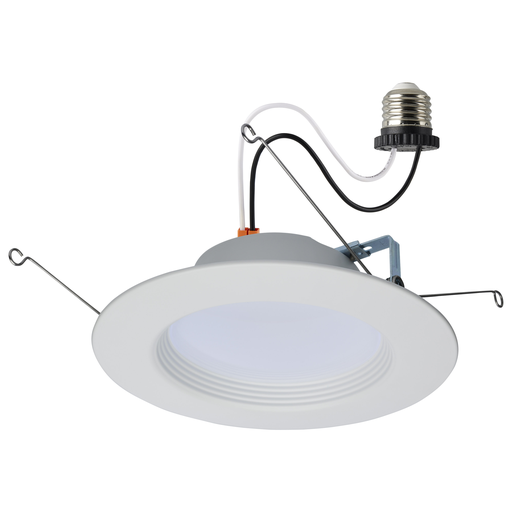

SATCO|NUVO's S11825R1 LED Retrofit Downlight is the easy way to convert traditional recessed lighting to high-lumen LED. This 5/6-inch round fixture is sized for, and comes ready with, an E26 base adapter for instant illumination when installed with existing cans. The stepped baffle design reduces glare and the fixture produces exceptional color rendering to enhance any environment from home to office.

Technical Information

Amperage
0.092 Amp
Applications
Recessed Lighting
Average Rated Life
50000 hr
Beam Spread
90
Color Temperature
Warm White To Natural Light
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
90 W
Indoor Outdoor
Indoor
Lamp Type
LED
Lens Color
Frost
Lens Material
Polycarbonate
Lumens
1,200 Lumen
Material
Steel
Number of Lamps
1
Operating Temperature
-20 degrees C
Power Factor
0.9
Reflector Finish
N/A
Style
Utility
Technology Type
LED
Type
Downlight Retrofit
Voltage
120 Volt
Wattage
13.7 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923947773
Finish
White
Fixture Type
Round
Product UPC
04592394777
Weight
0.63 lb

Dimensions

Diameter
7.4 Inch
Height
2.32 Inch
Length
7.4 Inch
Warranty Length
5 yr
Width
7.4 in

Certifications and Compliance

Country of Origin
China

Certifications & Compliance

Prop 65 Warning
Lead
Features
  • 5 CCT Selectable
  • White Trim
  • 90-Degree Beam Angle
  • E26 Adapter Included
  • 90 CRI
  • Wet Location Rated
  • 50,000 Hour Life
  • Dimmable Down to 10%
  • Suitable for Bathroom Applications
Replaced By Products
  • S11825
  • S29740
  • S29741
  • S29742
  • S29743
  • S39740
  • S39741
  • S39742
  • S39743
  • S8992
  • S9119
  • S9475
  • S9476
  • S9477
  • S9740
  • S9741
  • S9742
  • S9743
Prop 65
  • Lead
Accessory Products
  • 80-996
  • S9000
  • S8999
  • 80-982
  • 80-983
  • 80-2676
  • 80-988
  • 80-989
  • 80-868
  • DAL06P-C2
  • MA-PRO
  • RRD-PRO
  • HQRD-PRO
  • HQRA-PRO
  • ST-PRO-N
  • RRST-PRO-N
  • HRST-PRO-N
  • RCL-153PNL
  • DVCL-153P
  • AYCL-153P
  • SCL-153P
  • CTCL-153P
  • LECL-153P
  • TTCL-100H
  • DVCL-253P
  • AYCL-253P
  • NTCL-250
  • TGCL-153PH
  • 6672
  • 6674
  • IPL06
  • DSL06
  • TSL06
  • RNL06-10Z
  • DSM10
  • TSM10
  • PD-5NE
  • MRF2S-6ELV
  • MACL-153M
  • STCL-153M
  • MACL-LFQ
  • MSCL-OP153M
  • S11268
  • CTRP-253P
  • DVRP-253P
  • NTRP-250
  • 86/103
  • DDL06
  • RRD-6CL
  • RH703PTUTC
  • RHCL450PTC
  • TAL06P-C2
  • PD-6WCL
  • PD-10NXD
  • RRD-10D
  • RRD-6ND
  • RRD-H6BRL
  • HQRD-6ND
  • HQRD-10D
  • HQRD-10NBD
  • HQRD-HN6BRL
  • DSL06-1LZ
  • 66ELV
  • DDMX1
  • RF9640-ND
  • VSUL06D
  • DUL06P-C2
  • DW6HD
  • DH6HD
  • DG6HD
  • DZ6HD
  • DL6HD
  • SAL06P
  • WWRL50WH
  • 66DF-10W
  • WSX-PDT-WH
  • NXFRD-UNV
Includes
  • E26 Adapter included (S9001)
Installation Notes
  • Can size minimum diameter: 5.36\
  • minimum height: 7.5\
