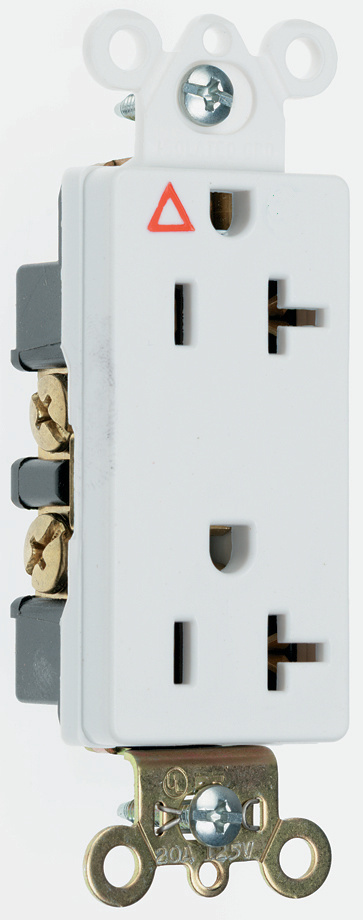

Product image for Pass & Seymour IG26362-I Isolated Ground Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour IG26362-I Isolated Ground Heavy-Duty Decorator Spec Grade Duplex Receptacle, Back & Side Wire, 20A 125V - Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # IG26362I | Codale Part # 4544904
$85.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Isolated Ground Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Light Almond

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Federal Specification
Material
Nylon
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .833 W x 3.813 H In
Style
Decorator
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007263619
Color
Ivory
Product UPC
78500726361
UNSPSC
39121406

Dimensions

Depth
0.833 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • IG symbol and Isolated Ground markings for easy identification and circuit delineation.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • High-impact resistant nylon face resists impacts and scrapes.
  • Corrosion-resistant plated steel strap.
  • Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
