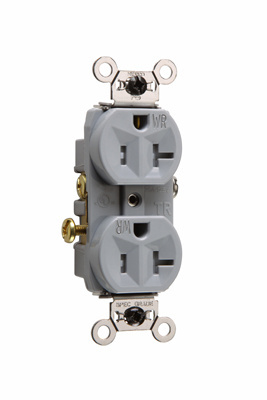

WR DUP RECP TAMP RES 20A/125V GRY

Manufacturer: Legrand Pass & Seymour | Catalog # WR20TRGRY | Codale Part # 4544911
$22.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Weather-Resistant Commercial Grade Receptacles, 20 amp, 125 volts, Ivory, WR20TRI

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Grade
Commercial
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
5.13x2.10x1.43
Style
Duplex
Type
Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007243222
Color
Gray
Product UPC
78500724322
UNSPSC
39121406

Dimensions

Depth
0.78 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Auto-ground clip assures positive ground.
  • Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
  • Strap tabs wrap around face to prevent strap from separating from face and back body.
  • Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
  • Heavy-duty, brass strap for added strength and ground conductivity.
  • Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
