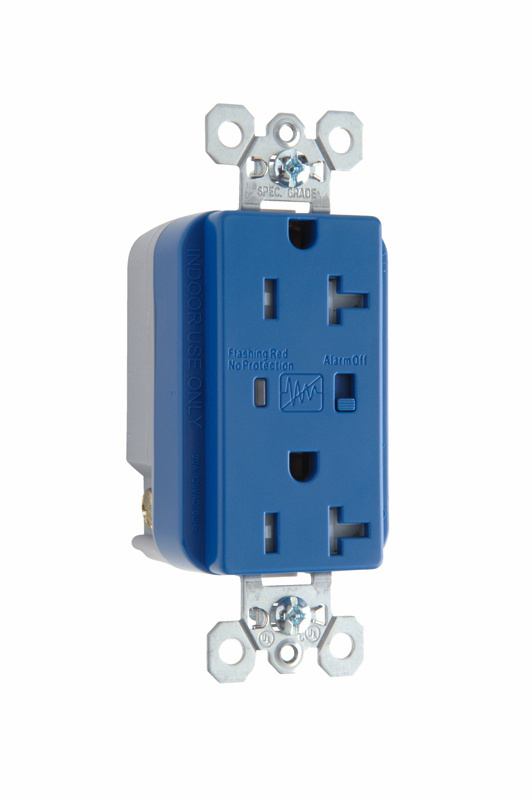

P&S TR5362BLSP SPD RECP TR 20A/125V

Manufacturer: Legrand Pass & Seymour | Catalog # TR5362BLSP | Codale Part # 4544921
$214.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tamper-Resistant Extra Heavy-Duty Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (with Audible Alarm and LED Indicator), Back and Side Wire, 20A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
For Residential, Commercial
Connection Type
Side and Back Wired
Duty Rating
Extra Heavy Duty
Frequency
60 Hz
Grade
Specification
Indicator
Audible Alarm,LED
Material
Thermoplastic
Mounting Type
Box
NEMA
5-20R
Number of Phases
1 Phase
Operating Temperature
-20degrees C to 55degrees C (-4 to 131degrees F
Size
.94" Depth x 1.75" Width x 3.82" Height
Tc Connection
Side & Back Wire
Temperature Rating
-4 to 131 degrees F
Type
Extra Heavy Duty, Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007020328
Class
IG
Color
Blue
Product UPC
78500702032
UNSPSC
39121406

Dimensions

Depth
1.4 Inch
Height
2-3/4 Inch
Width
1.7 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • AC receptacles available in 15 and 20 Amp, 125V
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
