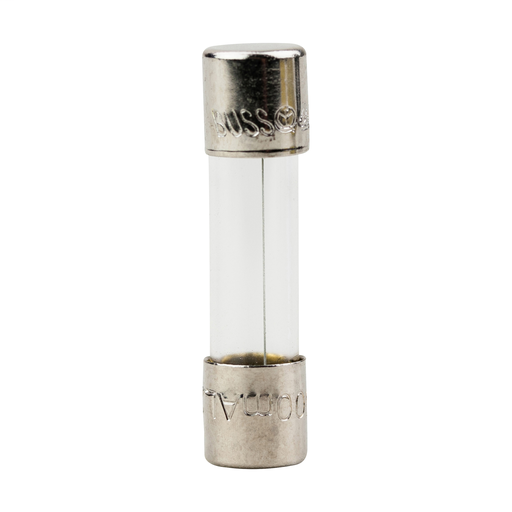

Bussmann Series S506-500-R 500ma Fuse

Manufacturer: Eaton Bussmann | Catalog # S506-500-R | Codale Part # 4545743
$4.35/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
5 mm x 20 mm Time-delay glass tube fuses. Time-delay, low breaking capacity. Glass tube, nickel-plated brass end cap construction. Designed to IEC 60127-1 and 2 (32 mA-10 A) and extensions: (12.5 A-15 A). Operating temperature: -40 .C to +125 .C.

Technical Information

Amperage
500 Amp
Applications
Electronic Circuits
Connection Type
Ferrule End X Ferrule End
Frequency
50 Hz
Indicator
Non Indicating
Interrupt Rating
35 AIC
Material
Brass
Size
5.20 mm Diameter X 20.00 mm Height
Standard
BSI,CCC,CSA,IMQ,SEMKO,UL (CANADA AND US),UR,VDE
Tc Connection
Ferrule End X Ferrule End
Type
European (IEC),Small Dimension
Voltage
250 Volt

Manufacturer Information

Brand
Bussmann

General Product Info

12-Digit UPC
051712639798
Product UPC
05171263979
Weight
.002 lb

Dimensions

Height
1/4 Inch
Length
3/4 Inch
Width
.25 in
Product Compliance
  • RoHS Compliant
  • VDE
  • CCC Marked
