HWDK BR15C2GRYTR 2/2 CONTROLLED 15A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR15C2GRYTR | Codale Part # 4546643
$9.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Load Controlled, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Back and Side Wired, Gray

Technical Information

Amperage
15 Amp
Applications
Commercial Specification Grade
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Nylon
NEMA
5-15R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Standard
C22.2,CSA,No. 42Fed. Spec. W-C-596NEMA® WD-6,UL,UL498 File No. E2186
Style
Smooth Face
Type
Tamper-Resistant
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585582528
Color
Gray
Product Series
Controlled
Product UPC
78358558252
Weight
0.2 lb

Dimensions

Height
1.7 Inch
Length
4.3 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
China
Features

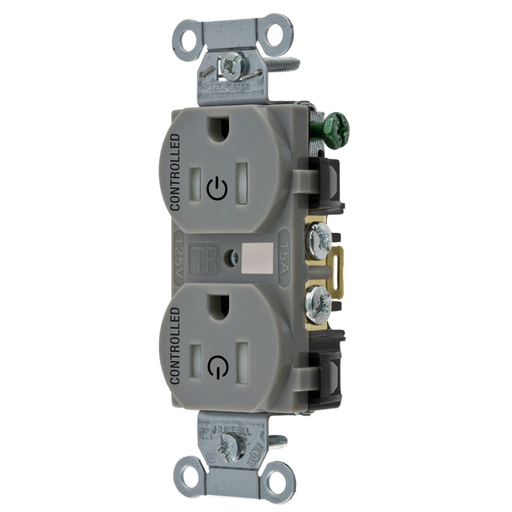

  • Permanently marked with universal power symbol and the word \"CONTROLLED\" to visually identify receptacles used in automatic energy management systems
  • Patented TR design eliminates plug-in difficulty and TR complaints
  • Markings can be read regardless of mounting orientation
  • Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements
  • Complements Hubbell's Load:Logic® control system or other available energy management system
