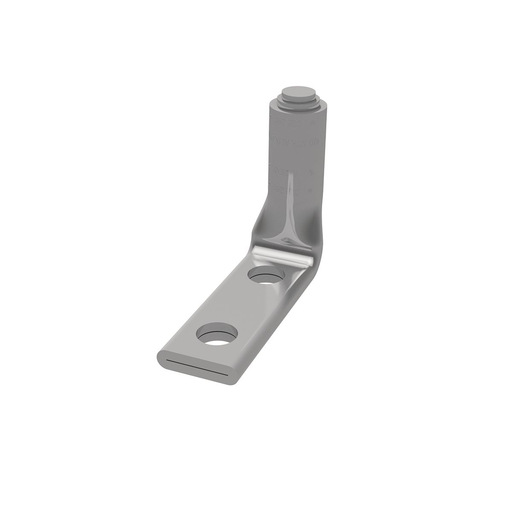

Image thumbnail 1
Image thumbnail 2
Email

Burndy YA31A390 AL Terminal, AL9CU, Internal Chamfer, Tin Plated, Prefilled PENETROX™ A13, End Cap, UL/CSA, 90.C, Up to 35kV, Color Code, Die Index

Manufacturer: Hubbell-Burndy | Catalog # YA31A390 | Codale Part # 4547216
$62.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90. C600 Volts to 35 KV.

Technical Information

Color Coding
Brown
Conductor Material
ALUMINUM / COPPER
Conductor Size
350 kcmil
Connection Type
Dual Rated
Material
Aluminum
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Wire Size
350 kcmil

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810178225
Finish
Tin Plated
Product UPC
78181017822

Dimensions

Hole Size
0.56 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • UL486A-486B Listed and CSA Certified
  • Aluminum terminals are dual rated to accommodate both copper and aluminum wire and are indicated with AL-CU on the connector - AL9CU is UL Listed 90°C, up to 35kV, AL7CU is UL Listed 75°C, up to 35kV
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with wire size, die index, color code, and crimp location bands
  • Factory pre-filled with PENETROX Type A13 oxide inhibitor
  • Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
  • Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
