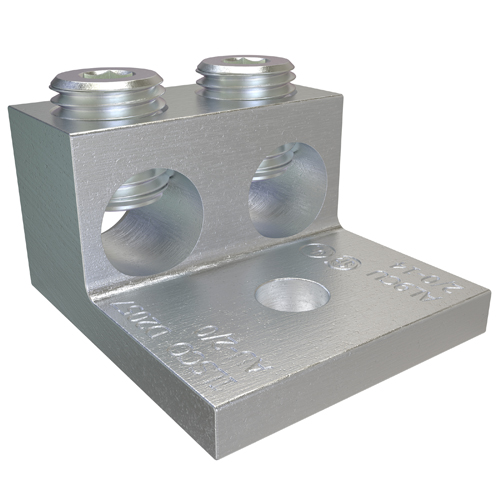

Image thumbnail 2
Email

Ilsco AU-2/0 Aluminum Mechanical Lug, Conductor Range 2/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-2/0 | Codale Part # 454887
$6.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, 2 conductors, 2 ports/wireways, Drive Type Main 3/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Two Conductor
Bolt Size
1/4 in
Conductor Material
Aluminum,Copper
Conductor Size
14-2/0 AWG
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.272 in
Number of Conductors
2
Number of Holes
1 Hole
Standard
UL Specifications: UL 486A-B,UL File Number: E6207,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AU:2 CONDUCTOR AL/CU
Voltage
35 Volt

Packaging

Pkg Qty
12

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669000740
Color
Silver
Finish
Tin Plated
Product UPC
78366900074
Used With
Circuits Rated 35 kV or Less
Weight
0.155 lb

Dimensions

Height
0.794 Inch
Length
1.469 Inch
Width
1.25 in
