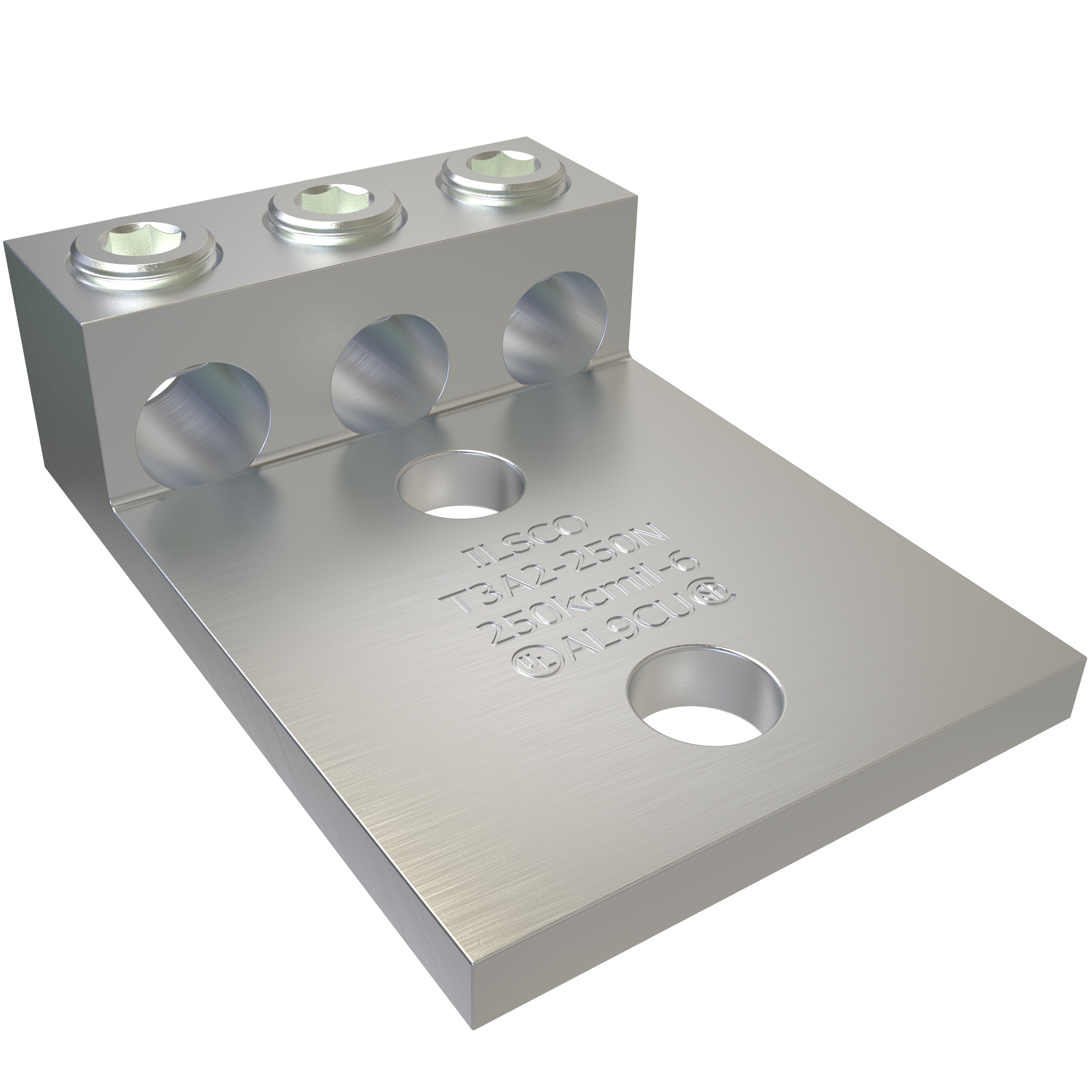

Ilsco T3A2-250N Aluminum Mechanical Lug, Dual Rated, Conductor Range 250-6, 3 Ports, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # T3A2-250N | Codale Part # 454888
$92.13 /ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Three Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 3 conductors, 3 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
1/2 in
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
3
Number of Holes
2 Hole
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
T3A:3 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669898309
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366989830
Used With
Copper and Aluminum Conductor
Weight
0.473 lb

Dimensions

Height
1.187 Inch
Length
4 Inch
Width
2.813 in
