HWDK HBL29W78 WT CONN,NEMA L18-30R,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W78 | Codale Part # 4548920
$210.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

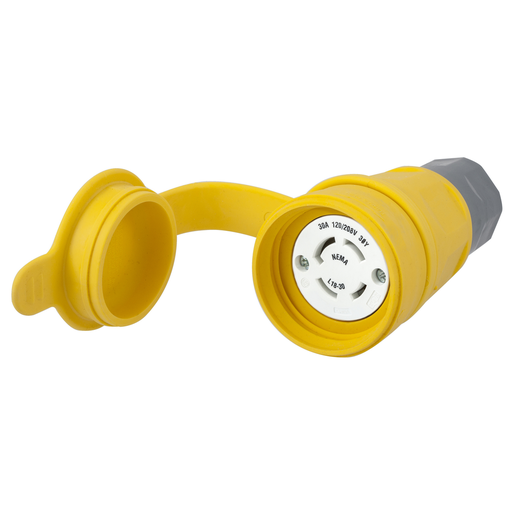

Watertight Devices, Twist-Lock® Connector, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 4 Wire, Thermoplastic elastomer, NEMA L18-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
For Industrial, Commercial
Conductor Size
14-10 AWG
Cord Size
0.385 - 1.05 in
Current
30 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite
Mounting Type
Cord
NEMA
L18-30R
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
4 Wire
Size
2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Connector Body
Voltage
120/208 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456485
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358545648

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
