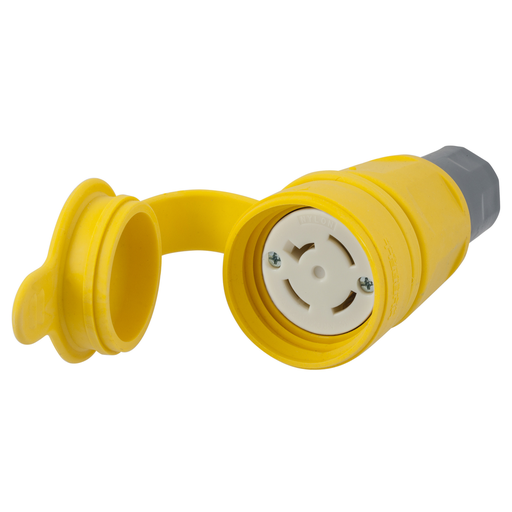

Hubbell HBL27W09 WATERTIGHT CONN, 20A 3PH Y 120/208V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL27W09 | Codale Part # 4548952
$189.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Connector, 20A, 3 Phase WYE 120/208V AC, 4 Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

Technical Information

Amperage
20 Amp
Applications
For Power Distribution
Body Material
Thermoplastic Elastomer
Conductor Size
14-10 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.375 - 1.125 in
Current
20 Amp
Dielectric Strength
2500 VAC
Material
Thermoplastic
Mounting Type
Cable
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

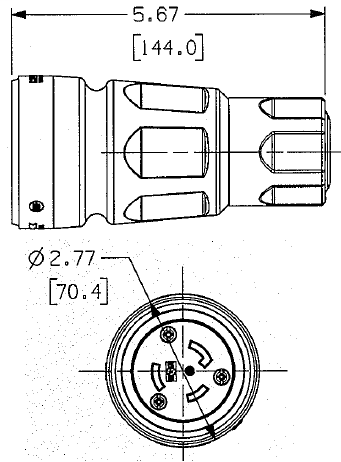

2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Type
Connector Body
Voltage
120/208 Volt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456362
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358545636

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
