HWDK HBL28W09 WT PLUG, NON-NEMA,30A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL28W09 | Codale Part # 4548955
$90.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

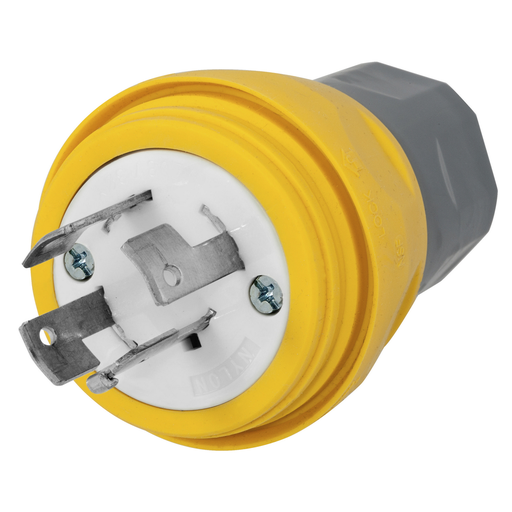

Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase WYE 120/208V AC, 4 Pole, 4 Wire, Thermoplastic elastomer, NON-NEMA, Yellow

Technical Information

Amperage
30 Amp
Applications
For Power Distribution
Body Material
Thermoplastic Elastomer
Conductor Size
12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S AWG Min, 8/3 S, 8/4 S, 10/5 S AWG Max
Contact Material
Nickel-Plated Brass
Cord Size
0.385 - 1.05 in
Cord Type
SJ, S, All Portable
Current
30 Amp
Dielectric Strength
2500 VAC
Material
Composite
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

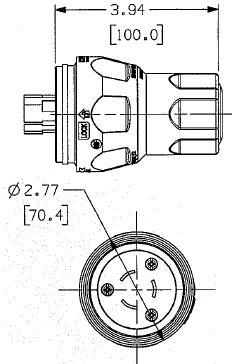

2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 degrees C to 60 degrees C
Type
Plugs
Voltage
120/208 Volt
Wattage
6240 Watt
Wire Count
4
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456409
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358545640

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
