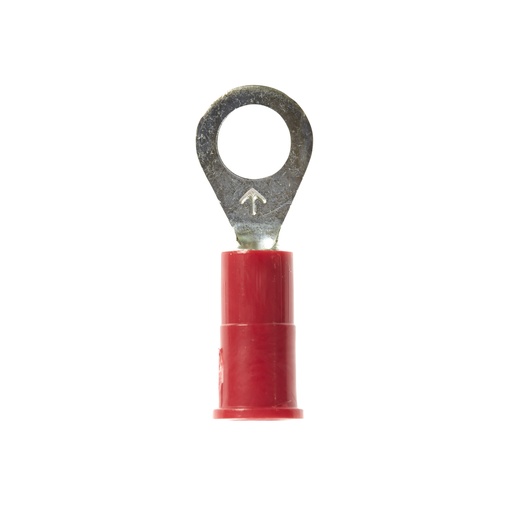

Product image for 3M 7000133680 3M™ Highland™ Vinyl I
Image thumbnail 0
Image thumbnail 1
Email

3M 7000133680 3M™ Highland™ Vinyl I

Manufacturer: 3M | Catalog # 7000133680 | Codale Part # 4549173
$17.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
3M™ Highland™ Ring Terminal RV18-10Q accepts a wire range of AWG 22-18 and has a stud size of 10. This ring is a standard style of tongue and is considered the safest and most reliable 3M™ Highland™ Terminal. The 3M™ Highland™ Ring Terminals are UL Listed and CSA Certified.

Technical Information

Conductor Size
22-18 AWG
Material
PVC
Max Operating Temperature
105.0 degrees C
Standard
CSA,E2186,UL
Tc Connection
Ring
Terminal Size
10
Type
Bell End
Wire Size
22-18 AWG

Manufacturer Information

Brand
3M
Sub Brand
Highland™

General Product Info

12-Digit UPC
051128600436
Color
Red
Product UPC
05112860043

Dimensions

Overall Length
0.93 in
Width
0.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
