3M 7100180520 3M™ Secure Grip Wire

Manufacturer: 3M | Catalog # 7100180520 | Codale Part # 4549174
$0.35/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

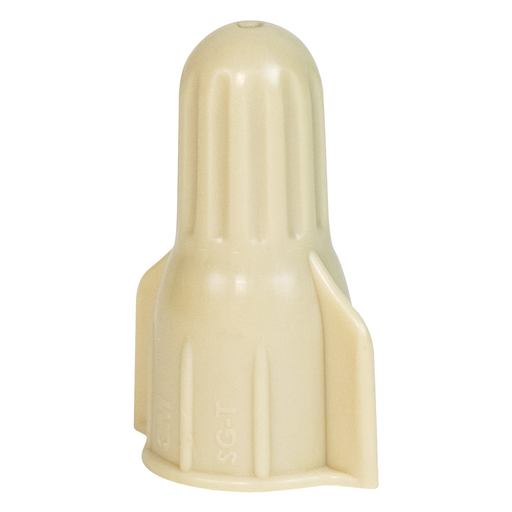

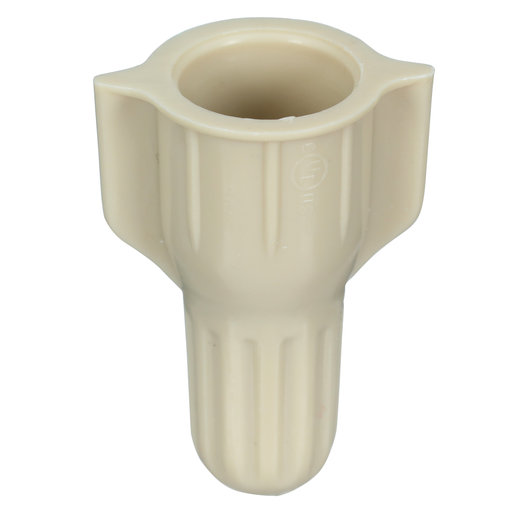

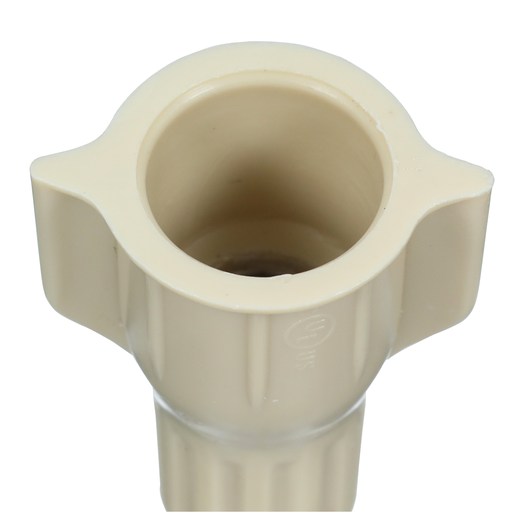

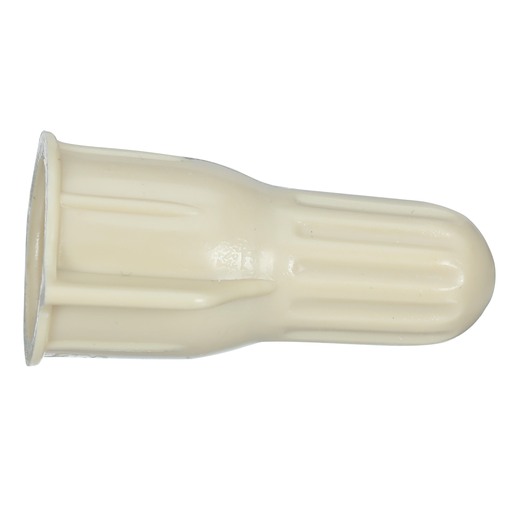

3M™ Secure Grip Wire Connectors are designed to give you dependable performance for a wide range of residential and commercial wiring jobs. An internal, insulated spring delivers a powerful grip for secure, solid connections that are made to last. The slip resistant ridges and straight wing design make installation fast, simple and easy on fingers.

Technical Information

Applications
For Residential, Industrial, Commercial and Institutional
Max Operating Temperature
105.0 degrees C
Standard
UL
Type
Secure RJ

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
076308926144
Color
Tan
Product UPC
07630892614

Certifications and Compliance

Country of Origin
China
Features
  • HOLDING POWER: Robust steel spring design for high performance holding power.
  • SECURE AND COMFORTABLE GRIP: Straight wings and slip-resistant ridges.
  • UL LISTED as a Wire Connector and tested per UL Standard 486C, UL File No. E23438.
  • RELIABLE CONNECTIONS: electrically connect and insulate copper conductors in a pigtail application.
  • AWG RANGE: Copper conductors only, No. 22AWG through 8AWG solid and/or stranded.
  • METRIC RANGE: Copper conductors only, .5mm2 thru 6mm2 (solid or stranded).
