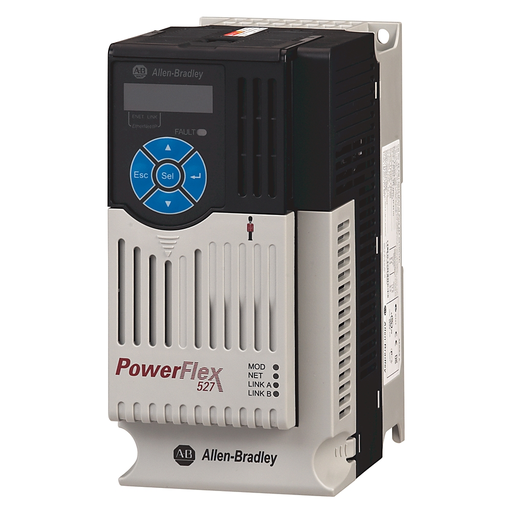

Product image for A-B 25C-A8P0N104 PowerFlex 527 1.5k
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

A-B 25C-A8P0N104 PowerFlex 527 1.5k

Manufacturer: Allen Bradley / Rockwell | Catalog # 25C-A8P0N104 | Codale Part # 4550958
$1,553.90/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PowerFlex 527 1.5kW (2Hp) AC Drive

Technical Information

Amperage
8 Amp
Applications
AC Drive, 1.5 kW (2 Hp), 200-240V AC Input, 50 Hz/60 Hz, Single-Phase, 8Amp, B Frame, Panel Mounting, IP20/NEMA Open Type, with 7th IGBT Brake
Control Type
Integrated Motion with Ethernet/IP
Enclosure Rating
IP20
Enclosure Type
IP20, NEMA Open Type, Frame B
IP Rating
IP20
Output
8Amp
Output Current
8 A
Power Rating
1.5 kW
Size
B
Standard
C-TICK,CE,CUL,KC,UL
Temperature Rating
-20 to 50 degrees C
Type
AC Drive
Voltage
240 Volt
Wattage
1.5 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
PowerFlex® 527

General Product Info

12-Digit UPC
887172530128
Product UPC
88717253012
Features
  • Provides the ability to transfer drive configuration files to a new machine
  • Offers a new level of AC drive integration to help deliver a coordinated and synchronized machine
  • Reduces downtime and minimizes manual reconfiguration by using Logix PACs to detect a replaced drive and download all configuration settings over EtherNet/IP
  • Features Safe Torque-off as a standard feature that can be applied through either hardwired safety or Integrated Safety. Both are certified to SIL 3 / PLe Cat 3
  • Offers built-in dual-port EtherNet/IP™ to support a variety of topologies as well as Device Level Ring functionality
  • Offers low-cost solution for machine parts, applications such as pumps, fans, in-feed and out-feed conveyors, that need simple speed control for induction motors
