Hubbell HBL22CM428H/LOCK INLET FS/FD MTG, 3P4W, 30A 600V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL22CM428 | Codale Part # 4551155
$2,226.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Flanged Inlet, 30A 600V AC, 20A 250V DC, 3-Pole 4-Wire Grounding, Weathertight, corrosion resistant, nickel plated brass plate, Non-NEMA, Screw Terminal, FS/FD Box Mounting, Metallic

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Marine
Material
Thermoplastic
Mounting Type
Screw
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard,UL Standard
Tc Connection
Pressure Screw Terminals
Type
Locking, Industrial Grade
Voltage
250 Volt
Wattage
18000 Watt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017532
Color
Metallic
Environmental Conditions
Watertight
Product UPC
78358501753
Used With
FS/FD Box
Weight
1.95 lb

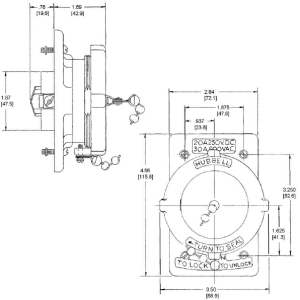

Dimensions

Height
2.47 Inch
Length
4.56 Inch
Width
3.5 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Nickel plated cover and closure cap provides protection from moisture and dust
  • FS/FD Mounting
