PROGRESS C5LED LED RECESSED HOUSING

Manufacturer: Progress Lighting | Catalog # C5LED | Codale Part # 4553138
$23.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual

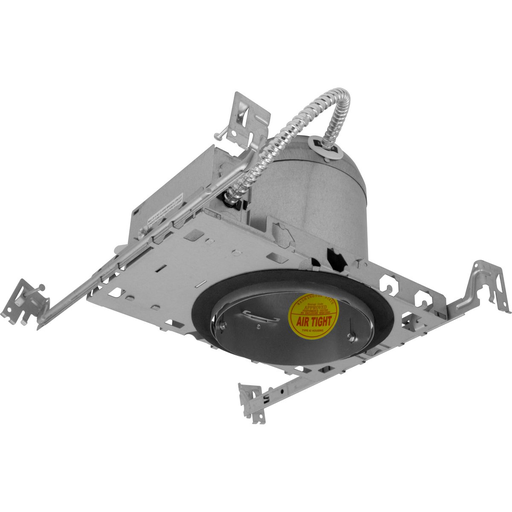

The C5LED is a 5" IC, airtight, downlight housing, specifically designed to provide the contractor with the best value downlight. The C5LED is intended to be used with LED recessed retrofit trims.

Technical Information

Frequency
60 Hz
Number of Lamps
1,1
Power Source
Hardwired
Voltage
120 Volt

Manufacturer Information

Brand
Hubbell

General Product Info

12-Digit UPC
785247102792
Product UPC
78524710279
Weight
13.23 lb

Dimensions

Height
7-1/8 Inch
Length
14-3/4 Inch
Warranty Length
1 yr
Width
13.300 in

Certifications and Compliance

Country of Origin
China
Features
  • Application: Ideal for new construction, the C5LED can also be used for most light commercial and residential applications where insulated ceilings require an IC rated, line voltage downlight.
  • Approvals: UL/CUL Damp Location Listed. IC listed for direct contact with insulation. Airtight tested to ASTM E283 standards. Meets State of Washington and California Title 24 Restricted airflow requirements.
  • Housing: Snap-on J-box doors provide easy access for wiring and field inspection. Housing adjusts up to 1\" to accommodate different ceiling thicknesses.
  • Installation: Pre-installed bar hangers with locking screws, integral nail, and alignment tab for wood joist construction. Hangers accommodate ceiling joists of up to 24 inches on-center. Captive bar hangers secure housing in place and can be reoriented 90 to housing.
  • Lamps: For use with HomeStyle HS56-WH-30K9 LED retrofit trim.
