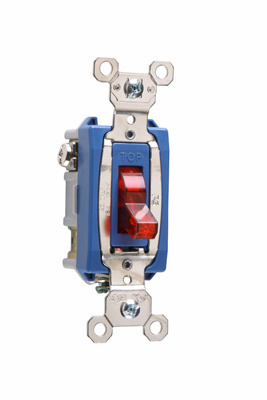

Pass & Seymour PS15AC1-RPL 1pole Pilot Lighted Switch, Back & Side Wire, 15A 120V - Red

Manufacturer: Legrand Pass & Seymour | Catalog # PS15AC1RPL | Codale Part # 4562987
$65.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
1pole Pilot Lighted Switch, Back & Side Wire, 15amp 120volt, Red

Technical Information

Action
Off
Actuator
Toggle Switch
Amperage
15 Amp
Applications
Commercial,Residential
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Grade
Industrial
Material
Thermoplastic
Number of Poles
1 Pole
Size
3.3"
Type
Pilot Lighted
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Decora®

General Product Info

12-Digit UPC
785007195804
Color
Brown
Finish
Matte
Product UPC
78500719580
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece toggle molded from chemical-,impact-,and heat-resistant thermoplastic.
  • Impact- and chemical-resistant cover.
  • Glass-reinforced, chemical-resistant thermoplastic back body for durability, strength, and resistance to harsh cleaners.
  • One-piece nickel-plated brass strap for superior corrosion-resistance.
  • Auto-ground clip assures positive ground.
  • Cam control and spring actuator for positive ''makes and breaks.''
  • Heavy-duty bumpers for quiet, smooth operation.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver-alloy contacts for long life and better heat dissipation.
  • Side and external screw-pressure-plate back wire with #14 - #10 AWG copper or copper-clad wire.
  • Heavy-duty, brass alloy, one-piece contact arm virtually eliminates contact bounce.
  • Grounding terminal is standard with screw-pressure plate back wire.
  • Shallow design for easier installation.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
  • Federal Spec Listed
