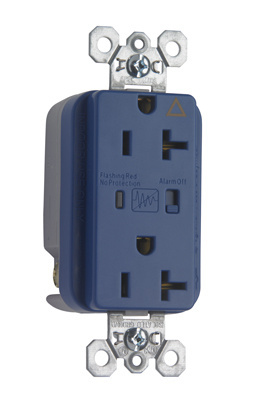

Product image for Pass & Seymour IG5362-BLSP Isolated Ground Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - Blue
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Pass & Seymour IG5362-BLSP Isolated Ground Surge Protective Duplex Receptacle, Back & Side Wire, 20A 125V - Blue

Manufacturer: Legrand Pass & Seymour | Catalog # IG5362BLSP | Codale Part # 4563078
$160.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Isolated Ground Surge Protective Duplex Receptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back & Side Wire, 20amp 125volt, Light Almond.

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Grade
Specification
Material
Nylon
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.70 L x 1.25 W x 3.75 H In
Tc Connection
Back and side wire
Temperature Rating
Operating Temperature: -20degrees C to +55degrees C (-4degrees F to 131degrees F), Storage Temperature: -40degrees C to +85degrees C (-40degrees F to 185degrees F)
Type
Duplex
Voltage
125 Volt
Wattage
Electrical power is expressed in Amps and Volts.
Wire Size
14-10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007193602
Class
IG
Color
Blue
Product UPC
78500719360
UNSPSC
39121406

Dimensions

Depth
1.225 Inch
Height
2.8 Inch
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Solid-state LED monitor has 25-year minimum life expectancy. A high visibility, wide-angle lens indicates protection is in place.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Audible alarm alert of MOV damage. Alarm able to be turned On/Off.
  • Wrap-around steel strap for structural integrity. Auto-ground is standard, for easier installation.
  • Triple-wipe, copper-alloy contacts for superior, more dependable connection.
  • External screw-pressure-plate back and side wire terminals including ground with external back wire clamps (exclusive) accept #14 - #10 AWG copper or copper-clad, solid or stranded conductors.
  • External pressure plate feature allows two conductors to be terminated by a single screw.
  • Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
