Hubbell SNAP1221PLWNA SWITCH, SNAP, SP, PILOT, 20A120/277V, WH, NA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP1221PLWNA | Codale Part # 4564066
$37.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Toggle Switches, Pilot Single Pole, 20A 120/277V AC, White Toggle, North American

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Pilot Light
Base Material
Thermoplastic
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Flamability Class
UL 94V-2
Material
Thermoplastic
Max Current
20 A
Max Voltage
277 V
Number of Poles
1 Pole
Operating Cycles
50,000
Operating Temperature
-40 degrees C
Size
4.18 in x 1.3 in x 1.74 in
Standard
UL
Style
Single Pole
Switch Type
Toggle
Tc Connection
Connectorized
Toggle Material
Thermoplastic
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
5540 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
SNAPConnect Series

General Product Info

12-Digit UPC
783585186238
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product UPC
78358518623

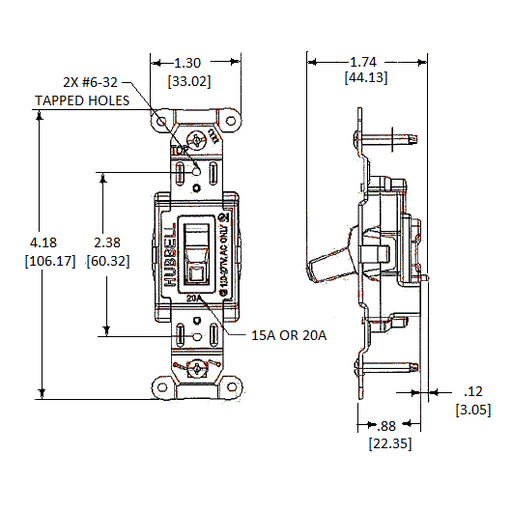

Dimensions

Height
1.74 Inch
Length
4.18 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Electrical - Max. Continuous Current - 20A
  • Electrical - Max. Working Voltage - 277V AC
  • Electrical - Overload - Minimum 4.8 times rated current for 100 cycles
  • Electrical - Temperature Rise - 30°C maximum at rated current
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact
  • Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
Features
  • Steel, zinc plated bridge is corrosion resistant
  • SNAP Connect, LED Indicator
  • Thread cleaning captive mounting screw
  • Pilot versions use LEDs for longer life
