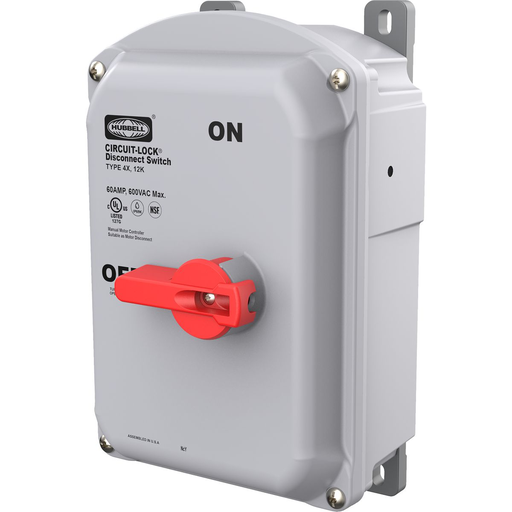

HWDK HBLDS60AC NM SLOPED DISC, 60A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS60AC | Codale Part # 4564086
$760.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 60A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, AC1 Aux Contact, cULus, NSF, CE, UL 508 / UL 60947-4-1A

Technical Information

Current
60 Amp
Horsepower
50 hp
Hub Size
1/4 in
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585763231
Color
Gray
Product UPC
783585763231
Shape
Rounded Top
Weight
3.363 lb

Dimensions

Height
5.94 Inch
Width
8.750 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Constructed from corrosion and impact resistant UV stabilized non-metallic material
  • Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
  • IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
  • Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
  • Product rating are permanently laser-marked and will not wash off

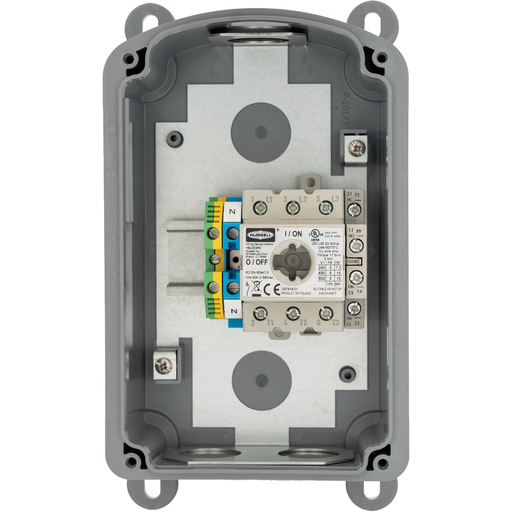

  • Factory installed HBLAC1 auxiliary contact is \"Break After Main Break\", 1 set of N/O contacts, 1 set of N/C contacts
