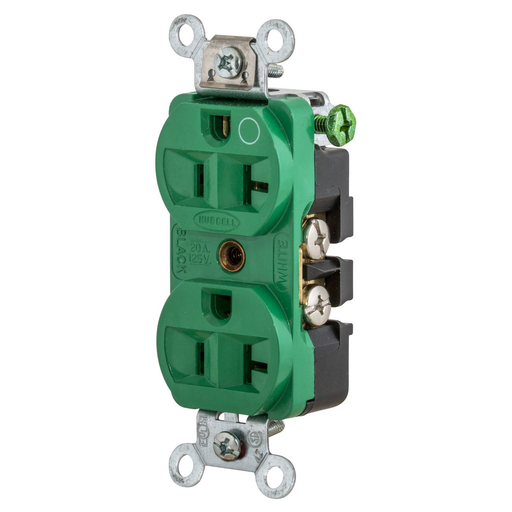

Product image for Hubbell HBL8300HGNDUP Receptacle, COM/HG, 20A 125V, 5-20R, GN
Image thumbnail 0

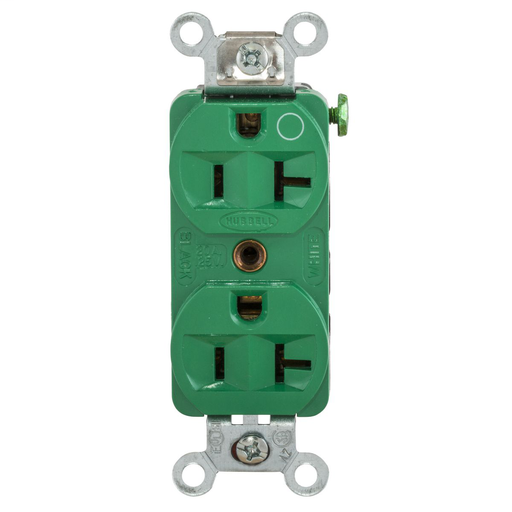

Image thumbnail 1

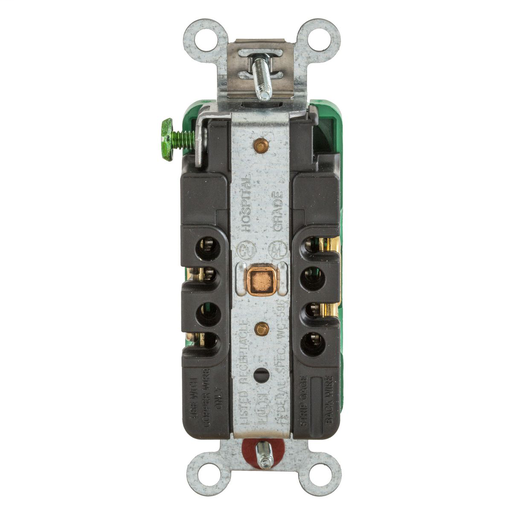

Image thumbnail 2

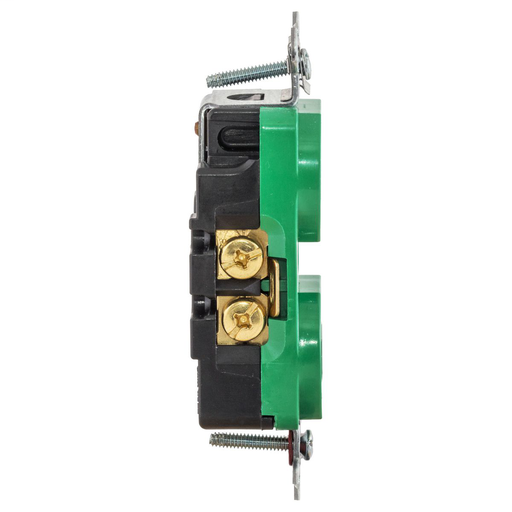

Image thumbnail 3

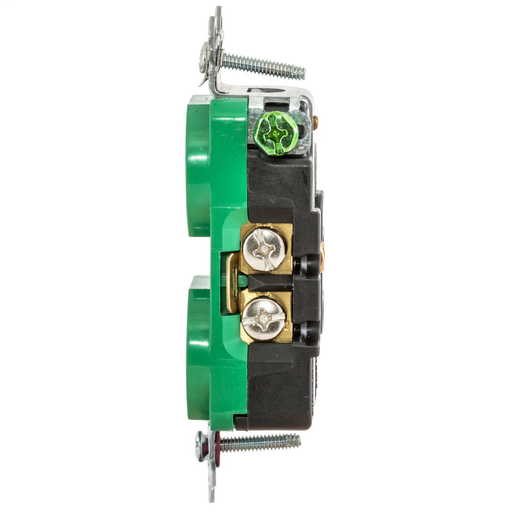

Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell HBL8300HGNDUP Receptacle, COM/HG, 20A 125V, 5-20R, GN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8300HGN | Codale Part # 4565714
$7.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Compact Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Green, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Slender/Compact Hospital Grade
Base Material
PBT,PBT
Conductor Size
12-10 AWG
Contact Material
Brass,Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
PBT,PBT
Flamability Class
UL 94 V-0
Grade
Hospital
Horsepower
1 hp
Material
Thermoplastic
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
3.28 in x 1.33 in x 1.05 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired Screw Terminals
Type
Receptacle
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585148250
Color
Green
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358514825
Weight
0.25 lb

Dimensions

Height
1.05 Inch
Length
3.28 Inch
Width
1.33 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • CSA Certified, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Slender/compact design
  • Impact-resistant finder groove face
  • Triple wipe contacts
