NVENT HOF EKOM12086 Compact Enc Alu

Manufacturer: nVent Hoffman | Catalog # EKOM12086 | Codale Part # 4568234
$12,541.32/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

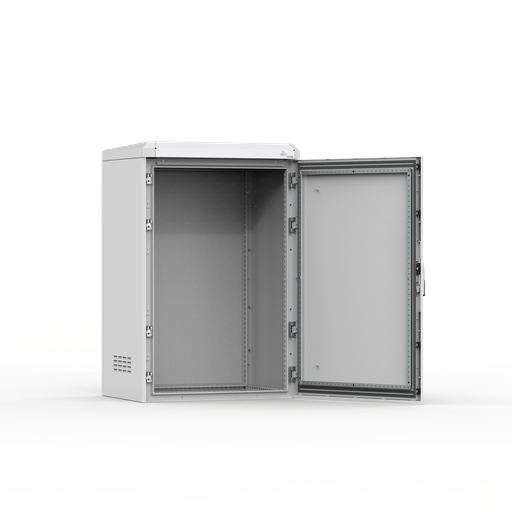

This enclosure, EKOM, has IP66 protection with anti-vandalism and is available off the shelf in many different sizes. This Compact Aluminium Floor Standing Outdoor Enclosure, EKOM, EKOM12086 item measures 1200x800x600mm has a material of Aluminum color Light Gray, finish Powder Coated.

Technical Information

Color Coding
RAL 7035
Material
Aluminum

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510478018
Color
Gray
Finish
Powder Coated
Product UPC
78351047801
Weight
165.20 lb

Dimensions

Depth
23.62 Inch
Height
32.12 Inch
Length
47.62 Inch
Thickness
0.08 in
Width
31.5 in
Features
  • Body: One piece enclosure body. Integrated depth profiles with hole pattern, allowing mounting plate to be adjusted in depth. The frame in multiple door versions, is divided into individual modules by means of vertical dividers.
  • Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels in the perimeter.
  • Double wall: Rear and lateral double walls with top and bottom ventilation openings allowing air flow.
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
  • \"Approvals: Climatic and Chemically active substances resistance according to EN61969-3 \"\"Mechanical structures for electronic equipment. Outdoor enclosures.\
  • Bottom plates: Supplied as accessory.
  • Rear panel: Fastened from the inside. Standard facilities for rear door mounting.
  • Protection: Complies with IP 66, TYPE 4X, 12, IK 10, when a bottom plate is fitted.
  • Material: Aluminium AlMg3. Frame: 2 mm. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Double wall: 2 mm.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
  • Finish: RAL 7035 structure powder coating 100% polyester.
  • Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening. Multiple door version has individual lockable doors.
  • Delivery: Frame with fitted door with swinghandle, rear panel, rain hood and double walls. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and bottom plates are not included in the standard delivery.
