PAN TM3S2510-C39 TM3S2510-C39 Cable

Manufacturer: PANDUIT | Catalog # TM3S2510-C39 | Codale Part # 4569353
$125.14/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

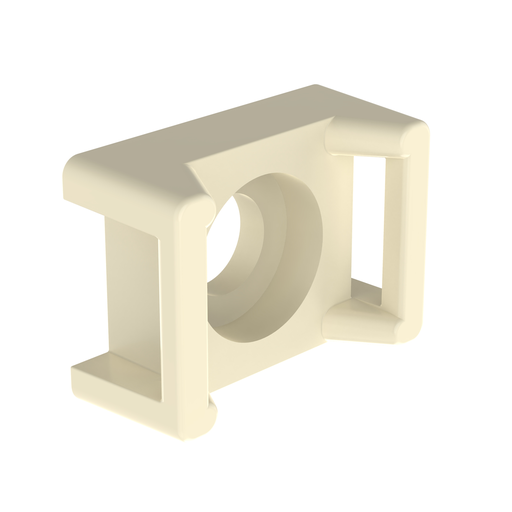

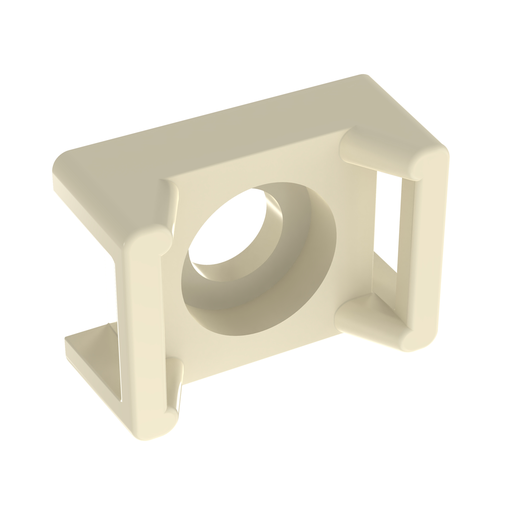

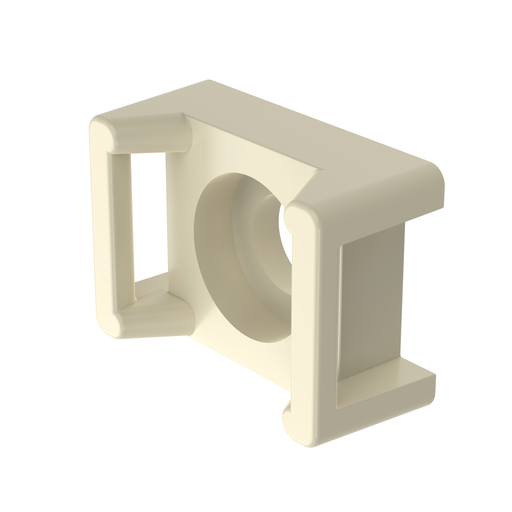

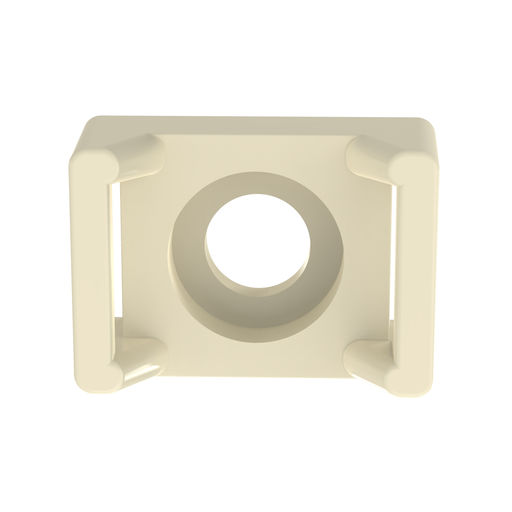

Panduit TM3S2510-C39 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #10 (M5) screw. They are 0.62" (15.7 mm) wide and suitable for miniature, intermediate, standard, and light-heavy cross-section cable ties. Made of Heat Stabilized Nylon 6.6, for use in indoor and high-temperature environments, are natural in color and come in packages of 100.

Technical Information

Applications
Indoor
Cable Size
NA In.
Cable Type
Cable Tie Mount
Material
Nylon
Max Operating Temperature
115 degrees C
Min Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
239 degrees F
Screw Size
#10 (M5)
Tensile Strength
222 lb
Type
Cable Tie Mount

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983014507
Color
Natural
Environment
Indoor
Product UPC
07498301450
UNSPSC
39121717

Dimensions

Height
0.37 Inch
Overall Length
0.87 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant
Prop 65
  • No
