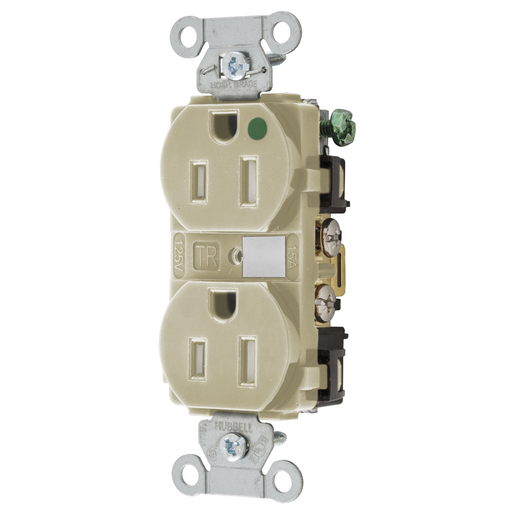

Hubbell 8200IVTRA Straight Blade Device, Tamper Resistant, Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Ivory

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 8200IVTRA | Codale Part # 4580953
$14.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Tamper Resistant, Duplex Receptacle, Hubbell-Pro, Hospital Grade, 2-Pole 3- Wire Grounding, 15A 125V, 5-15R, Ivory

Technical Information

Amperage
15 Amp
Applications
Hubbell-Pro Heavy Duty Hospital Grade
Conductor Size
14-10 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.57 in x 1.15 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Tc Connection
Terminal Screws
Type
Receptacle
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585542140
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Hubbell-Pro
Product UPC
78358554214
Weight
0.2 lb

Dimensions

Height
1.15 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Features
  • Tamper-resistant shutter complies with national electrical code requirements
  • Triple wipe contacts
  • High impact resistant face with circuit I.D. marking area
  • Steel mounting strap
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
