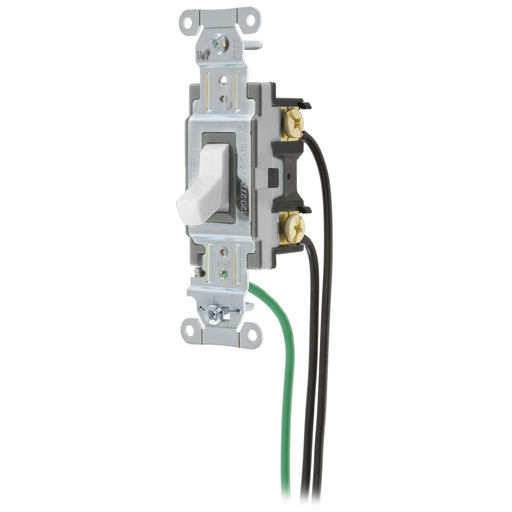

HWDK CSL115W SWITCH, SPEC, SP, 15A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # CSL115W | Codale Part # 4585735
$13.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, White

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
15 Amp
Applications
8" #12 AWG THHN
Base Material
Thermoset
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Material
Silver Alloy
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Flamability Class
UL 94V-2
Grade
Commercial
Material
Nylon
Max Current
15 A
Max Voltage
277 V
Number of Poles
1-1 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Screw Material
Brass
Size

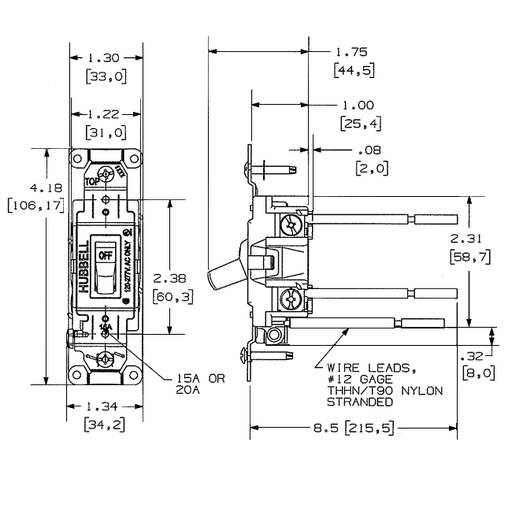

4.18 in x 1.34 in x 1.83 in
Standard
UL
Style
Single Pole
Tc Connection
Wire Leads
Toggle Material
Nylon
Type
Non-Reversing
Voltage
120-277 Volt
Wattage
4155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585187242
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358518724

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.000 in

Certifications and Compliance

Country of Origin
China
Features
  • Labor Saving
  • Thread cleaning captive mounting screw
  • Abuse resistant nylon toggle
