Burndy YST2C2C Cu compression T-Coupler, 2 str(Run&Tap), 600V-35Kv, Tin plated, Brown,10 index

Manufacturer: Hubbell-Burndy | Catalog # YST2C2C | Codale Part # 4586929
$139.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Cu compression T-Coupler, 2 str(Run&Tap), 600V-35Kv, Tin plated, Brown,10 index

Technical Information

Applications
For Run Conductor With A Perpendicular Tap Conductor
Barrel Type
Long
Color Coding
Brown
Conductor Material
COPPER
Connection Type
T-Coupler
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size

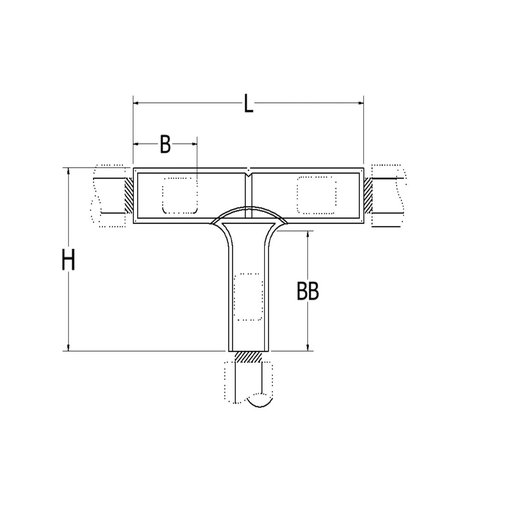

1.98 IN Height X 3.56 IN Length X 1.56 IN Dimension B X 1.56 IN Dimension BB
Temperature Rating
194
Type
YST, Uninsulated T
Voltage
35,000 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810501108
Finish
Tin-Plated,Tin-Plated
Product UPC
78181050110

Dimensions

Height
1.98 Inch
Length
3.56 Inch
Overall Length
90 mm
Width
0.42 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • High conductivity electrolytic copper tubing with heavy wall thickness, Type YST T-couplers provide low resistance for excellent electrical conductivity
  • Featuring long barrel length for all three wire accommodating barrels allows for an increased number of crimps increasing the mechanical strength of the connection while allowing the connection to operate at a lower temperature rating
  • Accommodates a wide range of run / tap combinations
  • Connectors are clearly marked
