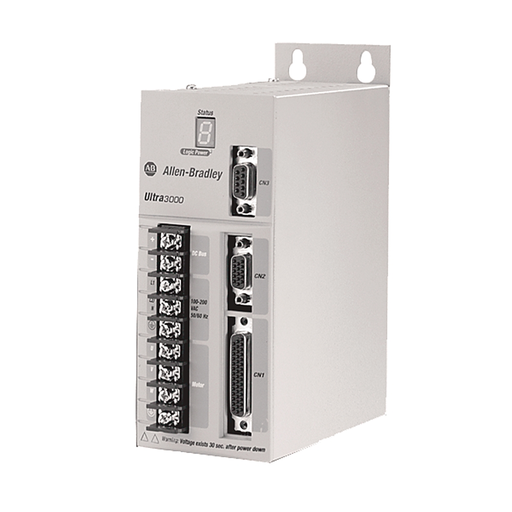

Product image for Allen Bradley 2098-DSD-020X Ultra 3000 2kW Servo Drive
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 2098-DSD-020X Ultra 3000 2kW Servo Drive

Manufacturer: Allen Bradley / Rockwell | Catalog # 2098-DSD-020X | Codale Part # 459172
$3,560.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Ultra 3000 2kW Servo Drive

Technical Information

Input Current
18 A
Input Voltage
100 - 240 VAC
Output Current
7.1 A
Power Rating
1 kW at 230 VAC, 0.5 kW at 115 VAC
Standard
CE,KC
Temperature Rating
55 degrees C
Type
Digital, Indexing
Voltage
115-230 Volt
Wattage
2 kW

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
Ultra 3000

General Product Info

12-Digit UPC
662453834917
Environmental Conditions
-40 to 70 C Storage, 5 - 95% RH Non-Condensing
Product UPC
66245383491
Weight
6.0900 lb
Features
  • One serial port for RS-232 or RS-485 communications
  • The Ultra™ 3000 servo drive does not comply with the European Union (2011/65/EU) RoHS directive that restricts the use of hazardous substances and cannot be shipped to areas that require RoHS compliance.
  • Built-in support for multi-turn absolute encoders or an option to supply external logic power to maintain position during power loss
  • Field-programmable flash memory firmware storage
  • Uses standard high-density D-Shell connectors
  • Four selectable general purpose outputs and relay output
  • Eight selectable general purpose inputs
