HWDK HBL2740SR2 LKG S/SHRD RCPT, L1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2740SR2 | Codale Part # 4595326
$128.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

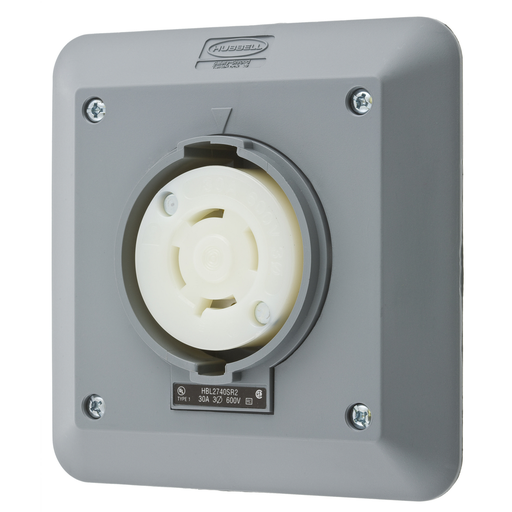

Locking Devices, Twist-Lock®, Safety-Shroud®, 2-Gang Semi Flush Receptacle, 30A 3-Phase Delta 600V AC, 3- Pole 4-Wire Grounding, NEMA L17-30R, Screw Terminal, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Gang Type
2
Material
Thermoplastic
Mounting Type
Screw, Surface, Semi-Flush
NEMA

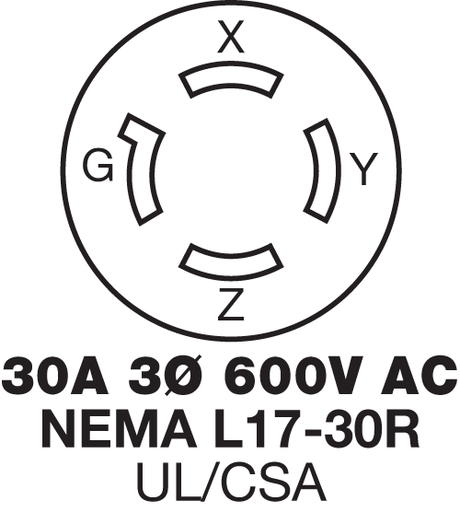

L17-30R
Number of Gangs
2 Gang
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 To 85 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
2-Gang
Voltage
600 Volt
Wattage
18000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585234922
Color
Gray/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523492
Weight
0.65 lb

Dimensions

Height
2.22 Inch
Length
5.12 Inch
Width
5.000 in

Certifications and Compliance

Country of Origin
USA
Features
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • 2-Gang Surface Mount
