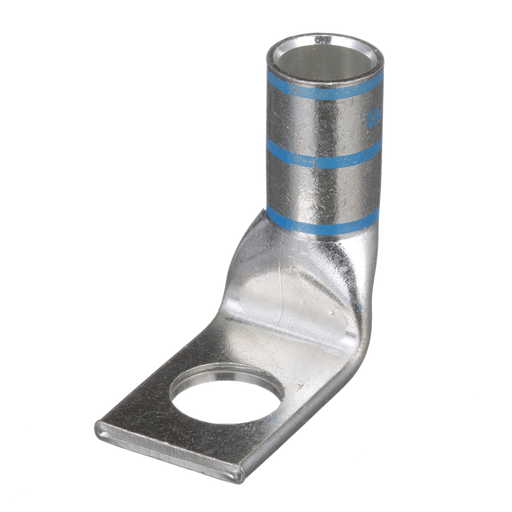

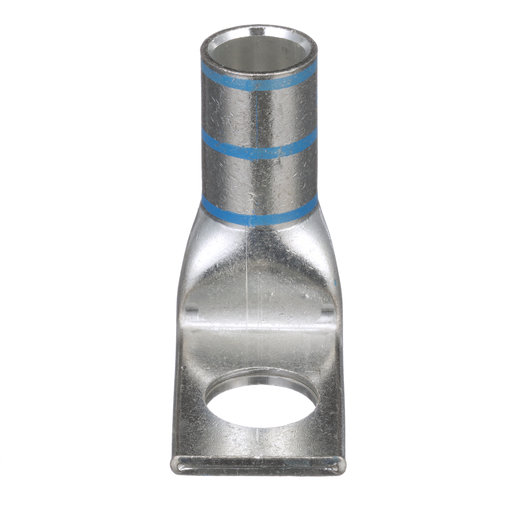

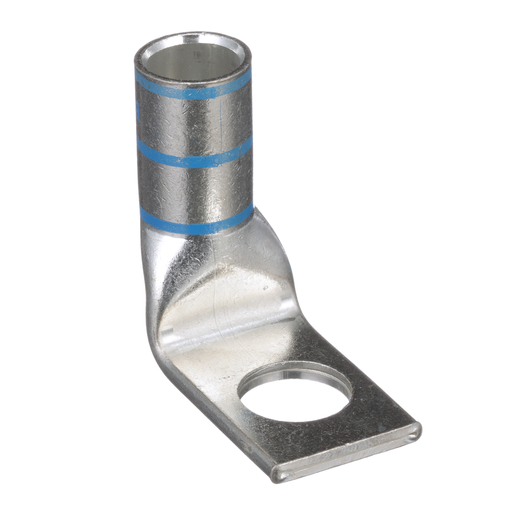

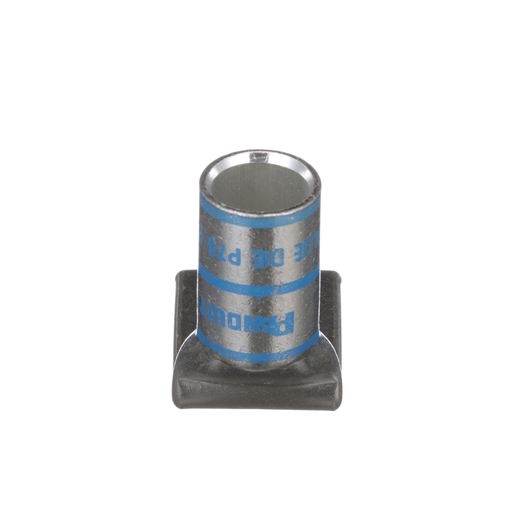

PANDUIT LCA400-78F-6 One-hole, standard barrel with window lug, 400 kcmil cable, 90. angle tongue, 7/8 stud hole.

Manufacturer: Panduit | Catalog # LCA400-78F-6 | Codale Part # 4596082
$5,954.92/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
One-hole, standard barrel with window lug, 400 kcmil cable, 90. angle tongue, 7/8 stud hole.

Technical Information

Angle
90
Barrel Length
1.5 in
Barrel Type
Standard Barrel Length with Inspection Window
Material
Copper
Number of Holes
1 Hole
Size
400 kcmil Code
Stud Hole Size
7/8 in
Stud Size
0.875 in
Tongue Angle
90 degrees
Tongue Thickness
0.18 in
Tongue Type
Standard
Tongue Width
1.39 in
Type
Compression Lug
Voltage
35,000 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983869817
Color
Blue
Product Type
Power Connectors
Product UPC
07498386981
UNSPSC
39121405

Dimensions

Length
2.97 Inch
Overall Length
2.97 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
