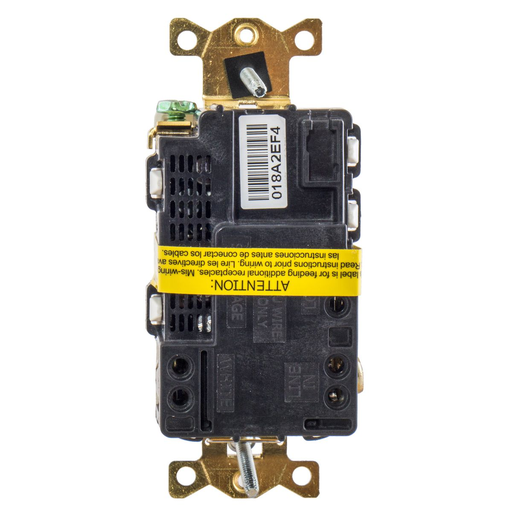

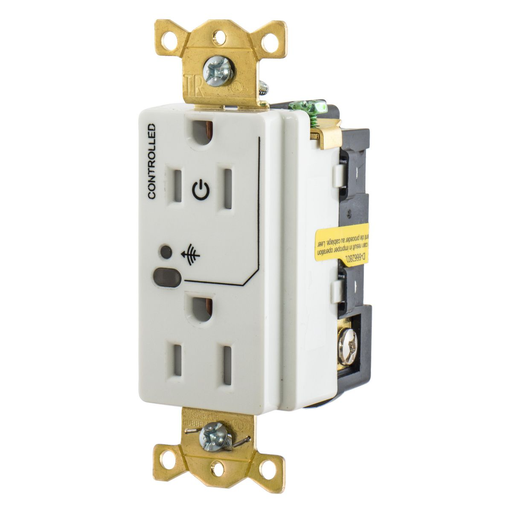

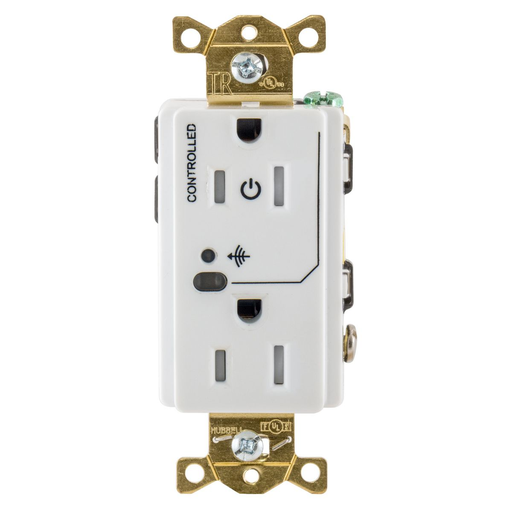

HWDK HBL5262RFC1W RF CTRL RCPT, SPL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5262RFC1W | Codale Part # 4599494
$219.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Wireless Switched Receptacles,Split Circuit, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, White.

Technical Information

Amperage
15 Amp
Applications
Commercial Grade
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Tc Connection
Terminal Screws
Temperature Rating
0?degrees to 40?degrees C (32?degrees to 104?degrees F) Relative Humidity (non-condensing) 0% to 95% (w/o impact)
Type
Radio Frequency Controlled Receptacles
Voltage
125 Volt
Wattage
1875/1875.0000 Watt;Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Duplex

General Product Info

12-Digit UPC
783585401843
Color
White
Environmental Conditions
Indoor Dry
Product UPC
78358540184
Weight
0.35 lb

Dimensions

Width
2.100 in

Certifications and Compliance

Country of Origin
China
Features
  • Designed for Automatic Receptacle (plug load) Control
  • Half controlled face and downstream control
  • Low voltage wire control
  • Tamper Resistant NOT Plug Resistant®
