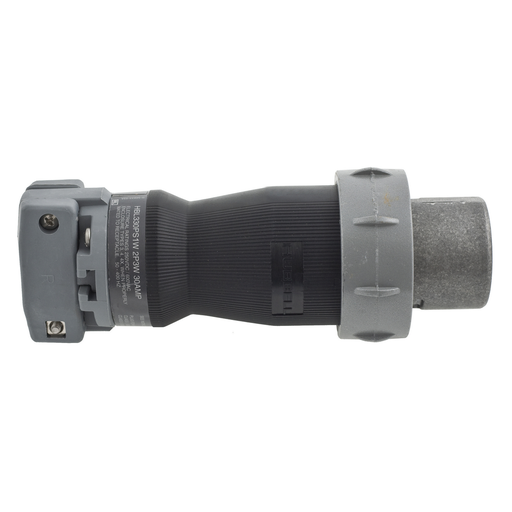

HCI HBL330PS1W PS, INS, PLUG, 2P3W,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL330PS1W | Codale Part # 4600507
$572.79/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 600V AC, 2-Pole 3-Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight

Technical Information

Amperage
30 Amp
Applications
High Ampacity Connections
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Material
Aluminum
Mounting Type
Cord
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,CSA Spec. C22.2 No. 159,Type 4X,UL,UL 1010,UL 50,UL Standard 1682
Style
Standard Service,Style 1 Grounding
Tc Connection
Pressure Terminal Screws
Type
Male, Straight
Voltage
250 Volt
Wire Count
3
Wire Size
10-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585010007
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501000
Weight
1.7 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.300 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
Puerto Rico
Features
  • Locking ring provides UL Type 4X watertight, dust-tight seal
  • Catalog number and rating visible while in use
  • All-Brass sleeve contacts provide reliable electrical contact
  • Watertight
