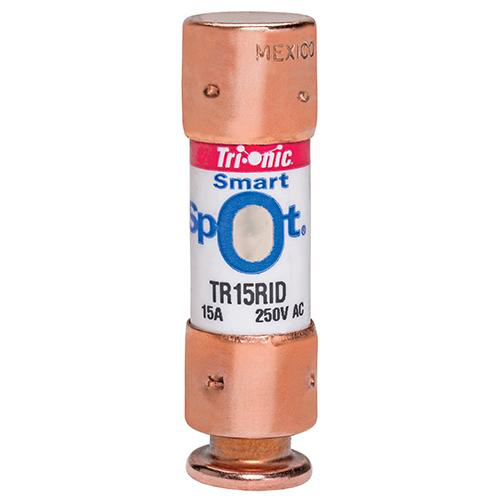

Mersen TR15RID 250V 15A TD RK5 FUSE

Manufacturer: Mersen | Catalog # TR15RID | Codale Part # 4604768
$9.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
15 Amp
Applications
For Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General Purpose Equipment
Contact Material
Tin Plated Copper
Frequency
50 Hz
Fuse Class
Class RK5
Indicator
SmartSpot®
Insulation Material
PolyTube
Interrupt Rating
20, 200 kAIC
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
160 V
Tc Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time-Delay
Voltage
250 VAC, 160 VDC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Tri-Onic®

General Product Info

12-Digit UPC
782001414764
Class
RK-5
Construction
Polyester
Product UPC
78200141476
Weight
0.05 lb

Dimensions

Diameter
0.56 Inch
Length
2 Inch
Features
  • Time-delay
  • Current-limiting
  • AC & DC rated
  • Optional solid state SmartSpot blown fuse indicator
  • Time-delay for motor start-ups and transformer inrush currents without nuisance opening
  • Current-limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • Easy-to-read label for quick brand recognition and replacement
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and high current limitation
Applications
  • Motor circuits
  • Mains
  • Feeders
  • Branch circuits
  • Transformers
  • Service entrance equipment
  • General-purpose equipment
Approvals & Standards
  • UL listed to standard 248-12 File E2137
  • CSA certified to standard C22.2 no. 248.12
  • DC listed to UL standard 248 TRS only
