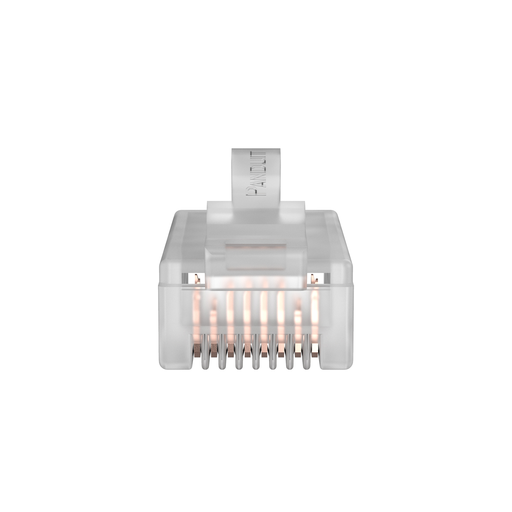

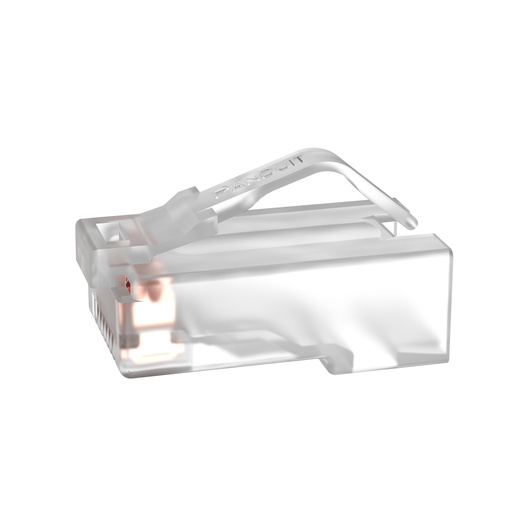

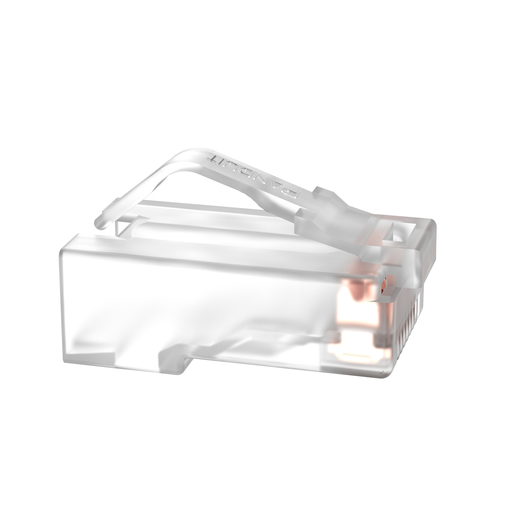

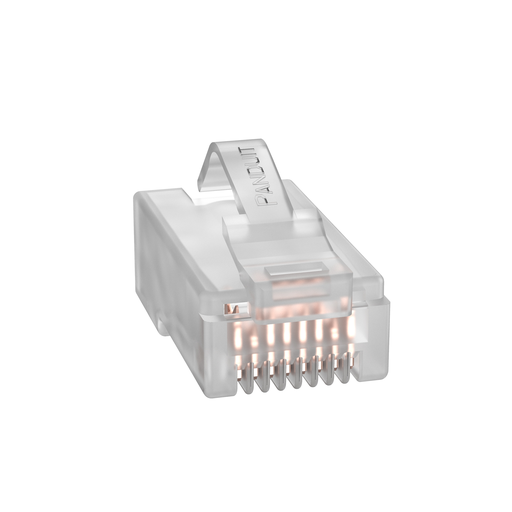

Product image for PAN MP588-X RJ45 Cat 5e UTP Modular
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

PAN MP588-X RJ45 Cat 5e UTP Modular

Manufacturer: Panduit | Catalog # MP588-X | Codale Part # 4605606
$1.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
The Cat 5e modular plug terminates 4-pair, 24-26 AWG, 100 ohm, solid or stranded, unshielded twisted pair cable with maximum conductor insulation diameter of 0.040 inches (1.02mm). The modular plug has a robust construction that is rated to 2500 mating cycles. The patented tangle-free latch prevents snags and provides easy release. Simplified termination method shall require no load bar. Guide ramp shall facilitate easy conductor insertion and termination. This includes 10 per package.

Technical Information

IP Rating
IP20
Max Operating Temperature
140 degrees F
Min Operating Temperature
-10 degrees C
Type
Modular Plug

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Plug®

General Product Info

12-Digit UPC
074983317257
Color
Clear
Product UPC
07498331725

Dimensions

Depth
0.9 Inch
Height
0.32 Inch
Width
NA In.

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Meet all applicable ANSI/TIA-968-A requirements and exceeds IEC 60603-7 specifications, Meet requirements of IEEE 802.3af and IEEE 802.3at for PoE applications, RoHS compliant
