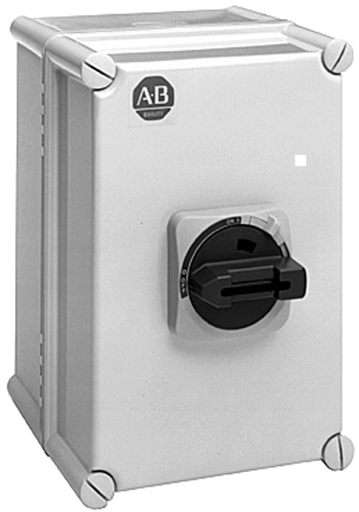

Image thumbnail 2
Image thumbnail 3
Email

A-B 194E-KA80E-PL11 Load Switch

Manufacturer: Allen Bradley / Rockwell | Catalog # 194E-KA80E-PL11 | Codale Part # 4608376
$678.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
194E Load switch, 80 A, OFF-ON 90, 3 Normally Open Power Poles, NEMA 3/4/4X-IP66 NonMtl(Rect), Base/DIN Rail, Standard Size Enclosure, Actuator: Red / Yellow, Lt:Aux Cntct (1 NO EM 1 NC LB), Right: No Modification

Technical Information

Amperage
80 Amp
Contact Configuration
1 NO, 1 NCLB Auxiliary
IP Rating
IP66
Load Rating
37 kW at 690 VAC
Mounting Type
Base
Number of Poles
3 Pole
Operating Cycles
200000
Temperature Rating
-25 to 60 degrees C Operating
Type
Enclosed
Voltage
690 VAC
Wire Size
(1) 10-1 AWG, (2) 10-4 AWG Rigid Wire, (1) 10-1 AWG, (2) 10-6 AWG Fine Strands

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
612598442133
Color
Red/Yellow Handle
Environmental Conditions
-40 to 80 C Storage
Housing Material
Non-Metallic
Product UPC
61259844213
