PAN CBS35-36-C Pan-Lug™ CBS35-36-C

Manufacturer: PANDUIT | Catalog # CBS35-36-C | Codale Part # 4609346
$693.01/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant

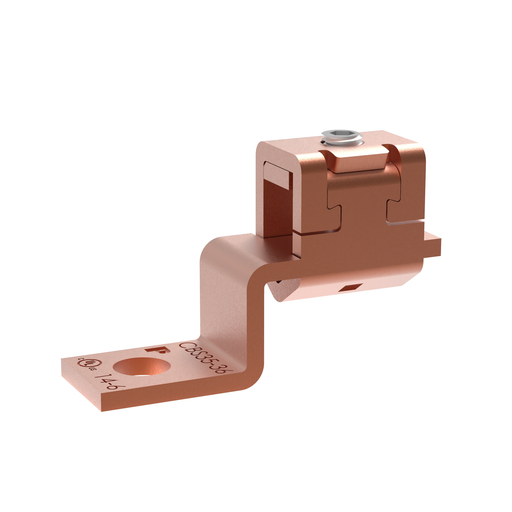

The CBS35-36-C Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Amperage
NA Amp
Barrel Length
0.47 in
Cable Size
AWG
Material
Copper
Number of Holes
1 Hole
Standard
CSA C22.2 No. 85,UL E23018,cULus
Stud Size
3/16 in
Tongue Thickness
0.06 in
Tongue Type
Offset Floating
Tongue Width
0.52 in
Type
Automatic, Metered, Service Entrance, Advanced
Voltage
600 Volt

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056260689
Product UPC
61305626068

Dimensions

Height
0.55 Inch
Overall Length
1.29 in
Width
9.9 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
N
Prop 65
  • N
Standards and Certifications
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
