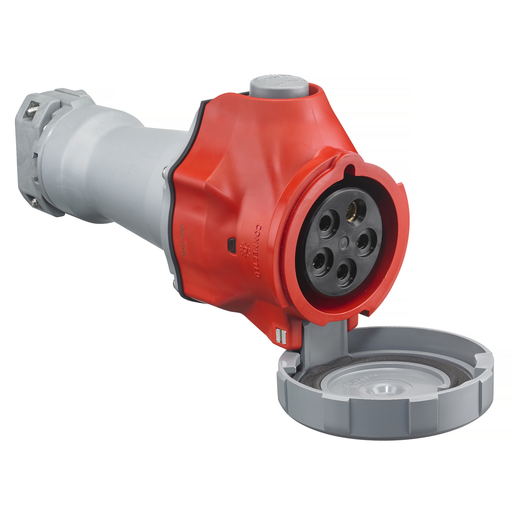

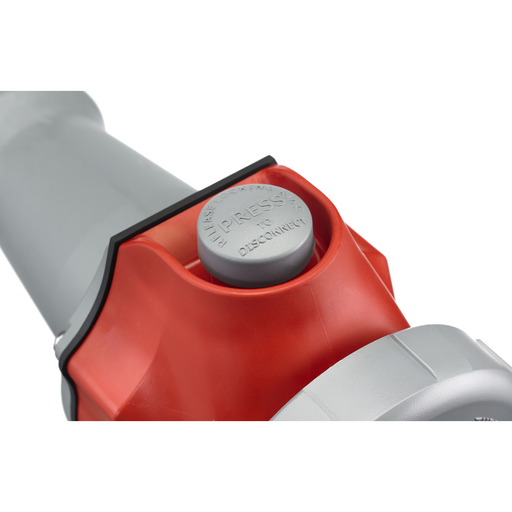

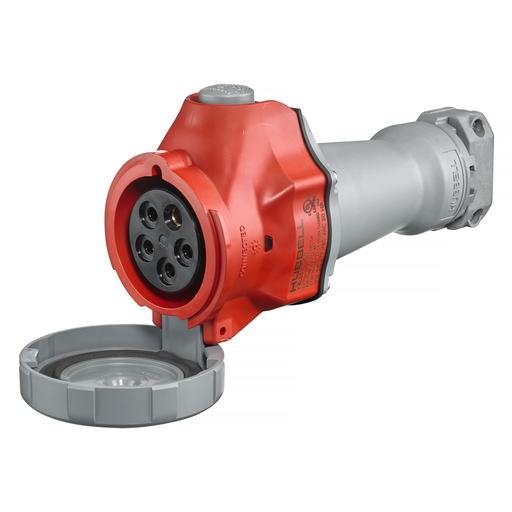

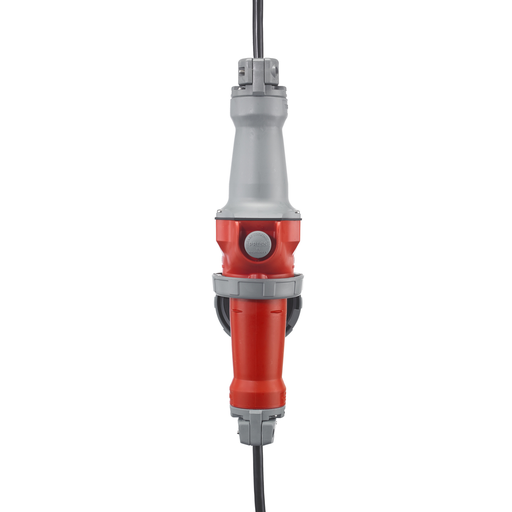

Product image for HWDK HBLS560C7W PS,IEC,SW CONN,4P5W
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Image thumbnail 13
Email

HWDK HBLS560C7W PS,IEC,SW CONN,4P5W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLS560C7W | Codale Part # 4610528
$1,621.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve, Connector, Switched, 60A 277/480V AC, 4-Pole 5-Wire Grounding, NEMA4X/IP69K

Technical Information

Amperage
60 Amp
Applications
Conduit Connection
Current
60 Amp
Material
Non-Metal
Mounting Type
Threaded Hub
Number of Conductors
Per Conduit Fill Table
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
1 in NPT
Style
IP69k NEMA 4X
Temperature Rating
0 - 176 degrees F
Type
Straight Male, Molded
Voltage
277/480 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
LiquidTight Conduit Fittings

General Product Info

12-Digit UPC
783585478685
Color
Gray
Finish
Molded
Product UPC
78358547868

Dimensions

Height
4.9 Inch
Length
11.7 Inch
Width
5.6 in

Certifications and Compliance

Country of Origin
USA
Features
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Approved as a diconnecting means for motor circuits and branch circuits
  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion-resistant PBT that is color coded by voltage
  • Unswitched ground and power indicating LED lights
