SATCO S28737 20WA21/LED/3CCT/120-27

Manufacturer: SATCO Lighting | Catalog # S28737 | Codale Part # 4612015
$49.92/ea
ea
Log in or register to view your price, purchase history, and more!
33 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

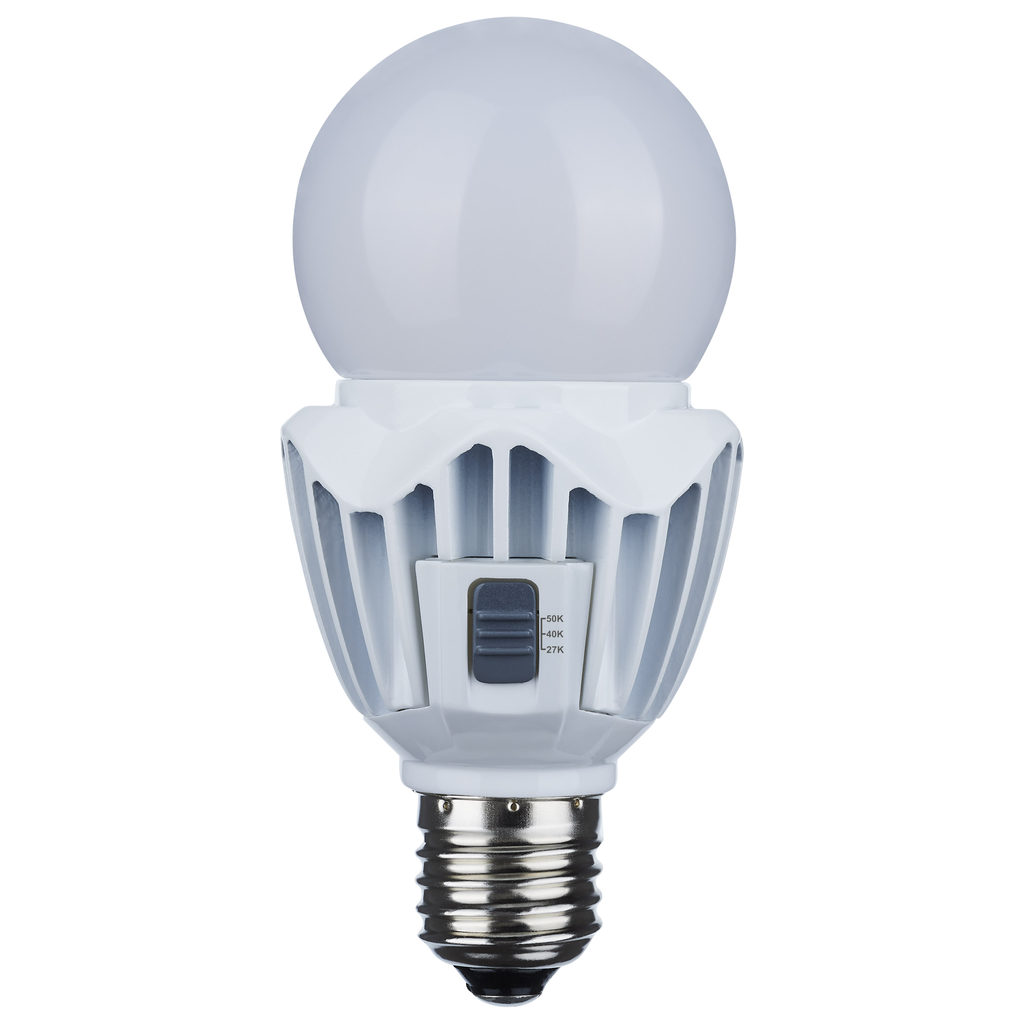

SATCO|NUVO's S28737 LED Hi-Pro A21 20W Lamp offers ColorQuick convenience ideal for commercial projects. Choose from 2700K/4000K/5000K color temperatures at installation to achieve the desired atmosphere for the environment. Designed to work in 120V to 277V fixtures, this lamp is compatible with ballast bypass fixtures and is dimmable when used in 120V applications. With enclosed decorative and functional fixtures in mind, this lamp was engineered with fins to promote heat dissipation, even in high operating temperatures.

Technical Information

Amperage
0.2 Amp
Average Rated Life
50000 hr
Beam Spread
280
Color Temperature
Warm White To Natural Light
Correlated Color Temp
2700 K
Dimmable?
Yes
Incandescent Equivalent
150 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Frosted
Lens Material
Polycarbonate
Lumens
2,760 Lumen
Material
Aluminum,Polycarbonate
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Type A
Voltage
120 Volt
Wattage
20 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923287374
Finish
White
Housing Color
White
Product UPC
04592328737
Weight
0.44 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 3 CCT Selectable
  • Range Voltage 120V-277V
  • Ballast Bypass Type B
  • Integrated Fins for Excellent Heat Dissipation
  • Dimmable
  • Damp Location Rated
  • Enclosed Fixture Rating
  • 280 Degree Beam Angle
Ballasting Requirements
  • Ballast Bypass
  • Direct wire 120-277V line voltage
  • No ballast or external driver required
Accessory Products
  • MA-PRO
  • RRD-PRO
  • HQRD-PRO
  • HQRA-PRO
  • ST-PRO-N
  • RRST-PRO-N
  • HRST-PRO-N
  • PD-5NE
  • CTRP-253P
  • DVRP-253P
  • NTRP-250
  • SELV-300P
  • IPE04-1L
  • 66ELV
  • DSE06-10Z
  • VPE06-1LZ
  • MACL-153M
  • STCL-153M
  • MACL-LFQ
  • MSCL-OP153M
  • DVCL-153P
  • RCL-153PNL
  • AYCL-153P
  • SCL-153P
  • CTCL-153P
  • LECL-153P
  • TTCL-100H
  • DVCL-253P
  • AYCL-253P
  • NTCL-250
  • TGCL-153PH
  • PD-6WCL
  • PD-10NXD
  • RRD-6ND
  • RRD-H6BRL
  • HQRD-6ND
  • HQRD-10D
  • HQRD-10NBD
  • HQRD-HN6BRL
  • HQRD-6CL
  • RRD-6CL
  • RNL06-10Z
  • DDMX1
  • 86/103
  • S11268
  • 6672
  • RRD-10D
  • 6674
  • IPL06
  • TSL06
  • DSM10
  • TSM10
  • 66DF-10W
  • DSL06
  • DDL06
  • MAELV-600
  • SLV-600P
  • DW6HD
  • DH6HD
  • DG6HD
  • DL6HD
  • DZ6HD
  • DUL06P-C2
  • VSUL06D
  • RH703PTUTC
  • WWRL50WH
  • REL06-WW
  • WSX-PDT-WH
  • RF9640-ND
  • SUF7
  • NXFRD-UNV
  • S11270
  • PD-3PCL
  • MRF2-3LD
  • MRF2-3PD
  • RRD-3LD
  • RRD-3PD
  • HQR-3LD
  • HQR-3PD
  • PHPM-WBX-120
Replaced By Products
  • S8735
  • S8736
  • S8737
  • S8738
  • S8778
  • S8779
  • S8791
  • S8792
